Objects are shown different then in Solibri

View Only

Guus Nijskens posted 11-18-2024 02:51

Hi,

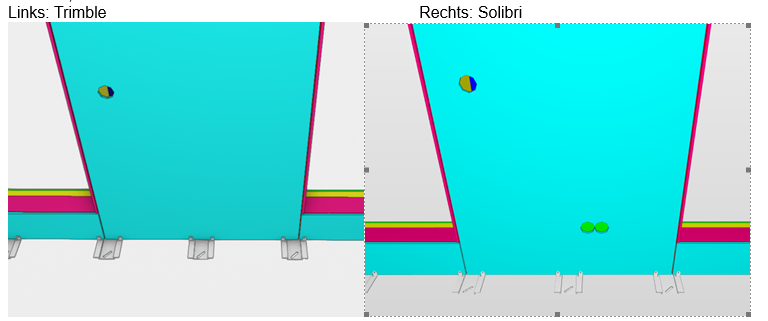

We are a company that makes drawings in HSB-cad, but lately we are getting complaints about object not showing. In the picture is shown that 2 holes are not showing in Trimble, but in solibri you can see them. Both are exacly the same IFC models. Im new to the forum, i dont know how to add the IFC model.

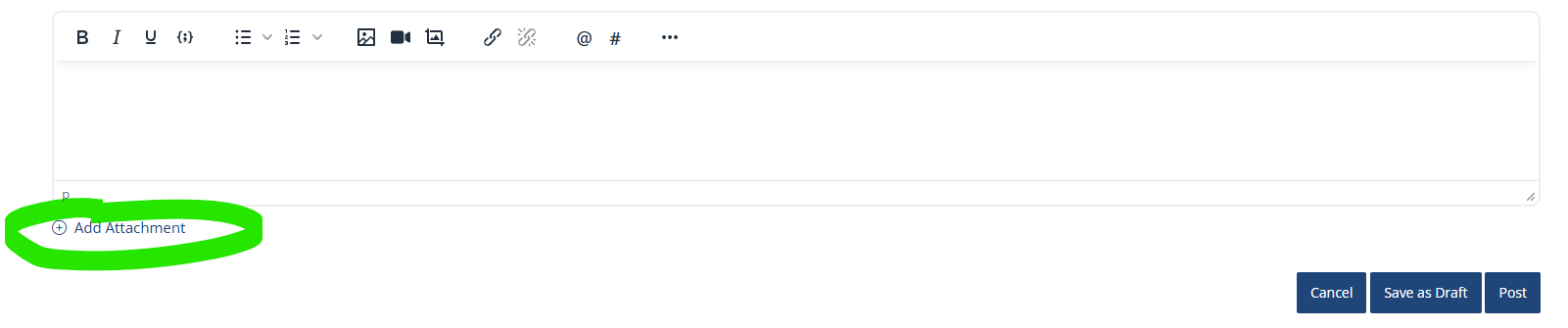

Mattias Hemeryck posted 11-20-2024 02:09

Guus Nijskens posted 11-20-2024 02:18

This is the plate that is not showing the holes like it should.

Attachment View in library

Drawing4.zip 8 KB

Mattias Hemeryck posted 11-20-2024 02:49

fwiw I get the same (wrong) result, in both desktop and web viewer. The holes are there (on the other side) but aren't cut out of one of the faces.
We sometimes have a similar problem Tekla Structures sometimes when the cutout volume (cilinder in this case) is flush with the face. It's fixed by making sure the cutout volume potrudes a bit.
