Change texture for FootpathCyclelane (surface 1.3 and -1.3)

09-08-2021 03:49

Change texture for FootpathCyclelane (surface 1.3 and -1.3)

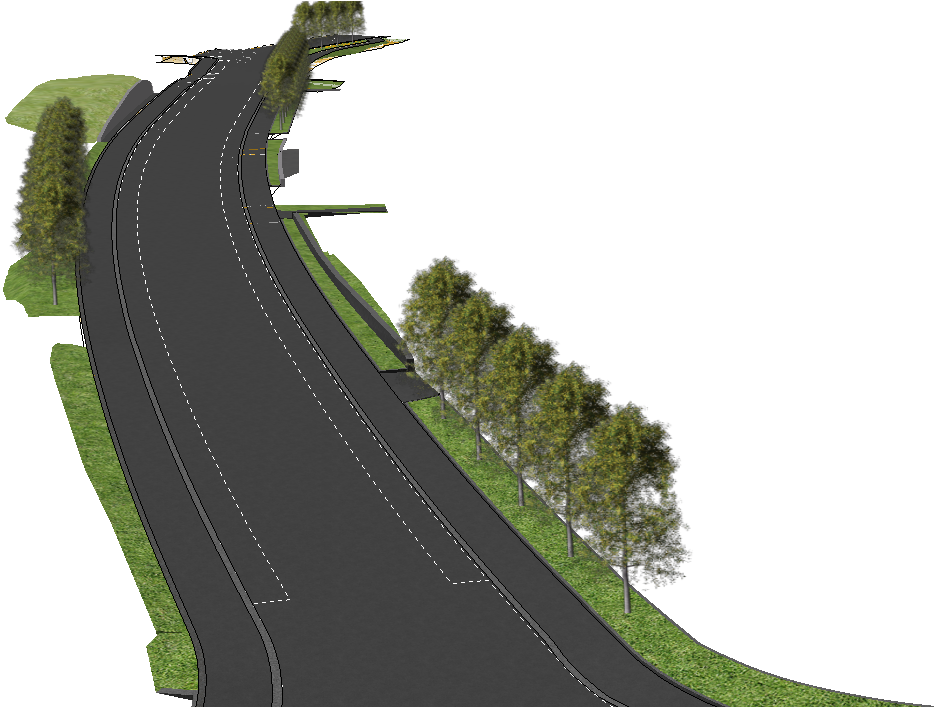

The first image shows the starting point. A road model that has defined the surfaces 1.3 and -1.3.

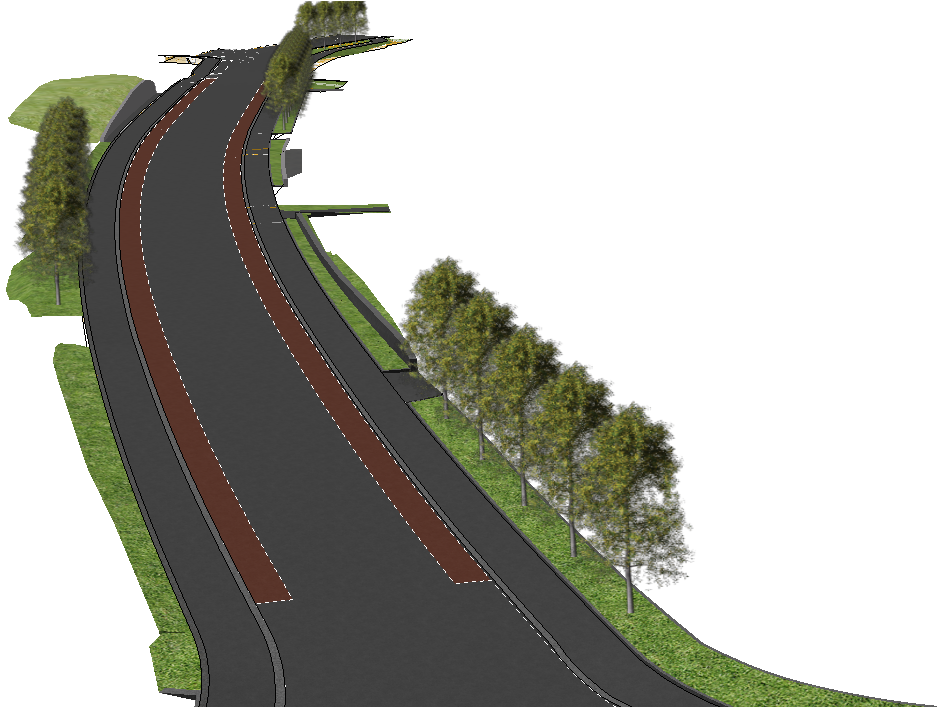

The second image shows how we want the result, as we have modified the textures for surfaces 1.3 and -1.3.

Method 1

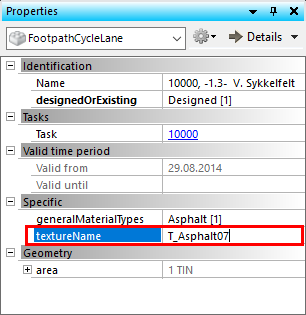

We click the surfaces, and change the texture directly in Properties, for example T_Asphalt07.

Method 2

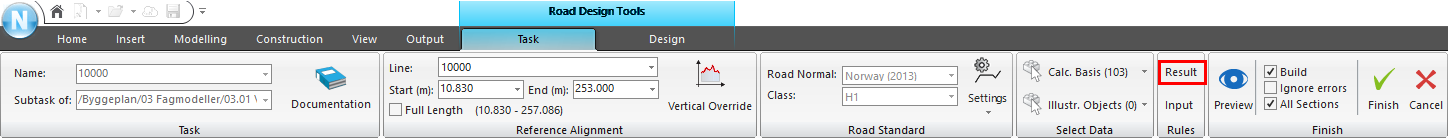

Edit the road model and click Result.

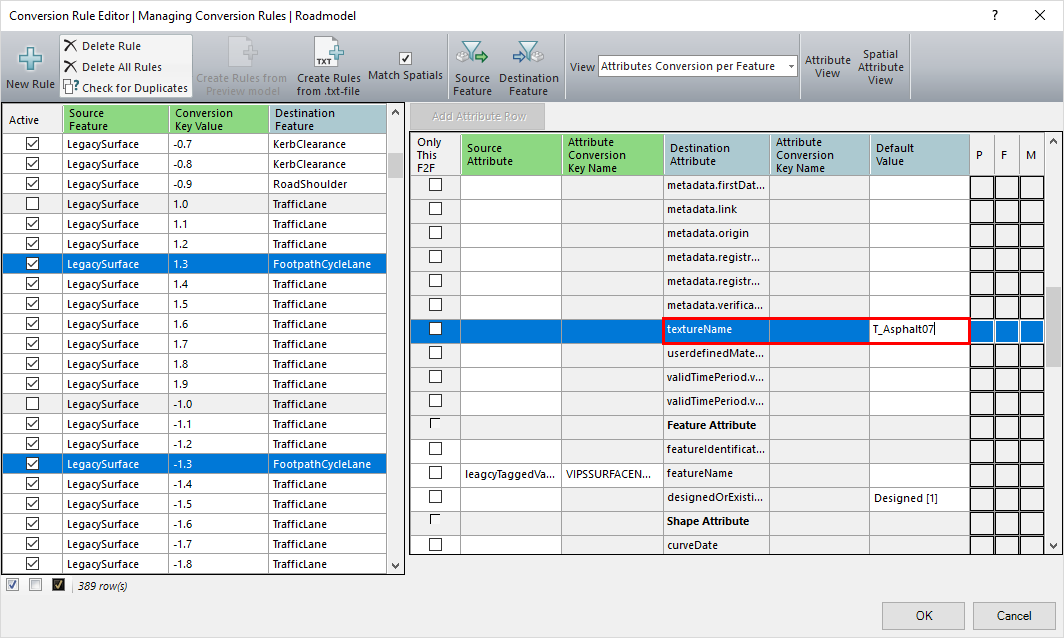

Change to Attributes Conversion per Feature. Change textureName to for example T_Asphalt07 for surfaces 1.3 and -1.3. Click OK, and rebuild the road model.
