Novapoint Water & Sewer Library

What

Use this function to the following:

• To draw Pipes from the WS Project to Cross-Sections of a designed road.

Where

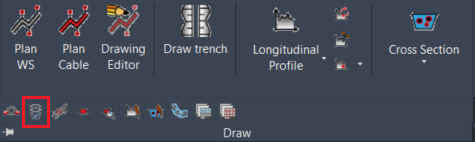

You can run the function from the following location:

How

1. The Road Cross-Sections have to be drawn into the drawing before anything else can be done.
2. Click the function.

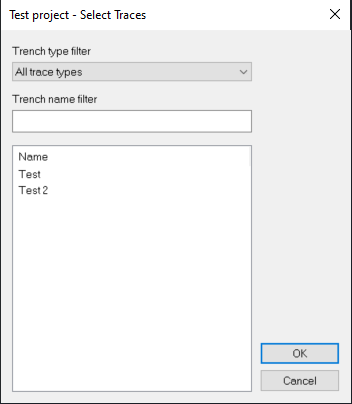

3. The dialogue box Select traces appears. This includes a list of all the trench sections available in the project.

4. Select the trace lying in the designed road and click OK or double click the trace in question. Subsequently the pipes will be drawn in the road cross-sections.
