Novapoint Water & Sewer Library

What

Use this function to draw the plan view of manholes.

• The function generates drawing files of selected manholes.
• Separate drawing files will be generated for each selected manhole.

Where

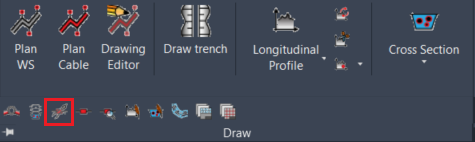

Run the function from the following locations:

How

When you run the function, a dialog box Manhole Sketch will pop up. This includes a list of all manholes available in the project.

• Select the manholes, of which drawing files are to be generated.
• The folder location, at which drawing files are to be saved, is to be defined in the field Output directory.
• Drawing files will be named with the manhole's names.
• Multiple manholes can be selected using windows selection criteria (i.e., using Shift and/or Ctrl; or using the mouse).
