Release Notes | 02-02-2021 | Connect 3D Viewer 1.0.165

02-03-2021 09:39

Trimble Connect 3D Viewer 1.0.165 - Release Note - February 2, 2021

There is a new version of the Trimble Connect for Browser 3D Viewer available at  https://3d.connect.trimble.com. Version identifier for this release is: 1.0.165.



To load the new version to your browser, click the refresh link when the version update message is displayed.



This version update contains new features:

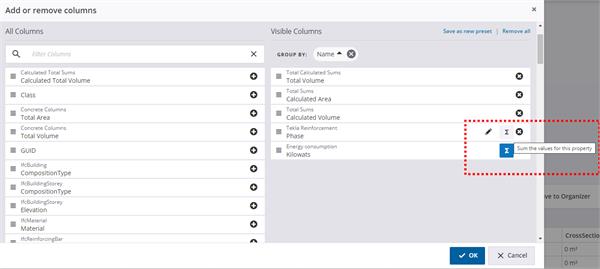

Configure which columns have the automatic sum calculation enabled in the data table: Like before, all columns which contain properties that have numerical quantity related data type like area or volume continue to be automatically summed up. The new feature is that users can enable the automatic sum calculation for any column that has numeric values in it. The automatic sum calculation is enabled from the column configuration dialog and it’s visible only for numeric properties that were not automatically summed up earlier.





This version update contains improvements and fixes:



  • Added a link to the online documentation in the menu
  • Fixed an issue where the Organizer UI panel  did not refresh properly when many trees/nodes were added quickly via the Organizer API
  • Fixed an issue where in some cases a loaded model did not appear in the data table
  • Fixed an issue where loading a view with markup failed in some cases
  • Workspace API:
    • Added support for model revisions
    • Added support for trb instantiation in addTrimbimModel API
    • Added an optional parameter to the API's 'DisableEventFiring'
  • The following items were introduced in the 1.0.163 version
    • Now the full name of the saved view is shown in a tooltip when hovering the mouse on top of the thumbnail
    • ReferenceObject and PresentationLayers property sets are now visible in the properties panel
    • Fixed an issue where changing the "Color by" option caused point clouds to turn black
  • The following items were introduced in the 1.0.159 version
    • Workspace API:
      • Added activateTool method
      • Extensions are now allowed to open hyperlinks in a new window
    • Fixed an issue where a page reload caused the active project change back to the previous project in some cases
    • Fixed an issue where bolts in a certain model were not displayed in 3D
  • The following items were introduced  in the 1.0.155 version
    • Fixed an issue where a view showing a model that has a circular hierarchy defined failed to load
    • Fixed an issue where custom property sets became read-only after another user edited the same property set at the same time
