How to install the Novapoint Product Library

For first time use and when a new update of the Product Library is released.

NOTE: Regularly there are updates with new products in the product library. To access the newest products, reinstall the Novapoint Product Library.

Choose Library

1. Choose the desired Product Library. In Novapoint ribbon, you can activate desired Product Library by clicking on the downward pointing arrow in the Product Library panel.

2. Change to other libraries by repeating the process.
3.

Download product libraries

1. In the Novapoint ribbon, navigate to the Product Library tab. In the menu choose “Download product libraries”.

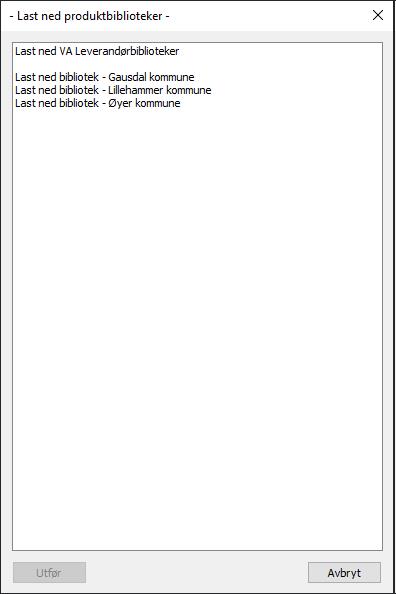

2. A new window will appear. Here you can choose between products from suppliers or products from municipalities.

3. The Product Library will be downloaded as a .zip folder. Save and extract to desired destination.
   NOTE: Saving it in a long file path might cause problems. If the file-path gets too long, Windows might have problems handling it.

Set path to the Product Library

1. In the Novapoint ribbon, navigate to the product library tab. In the menu, choose “Set path”.

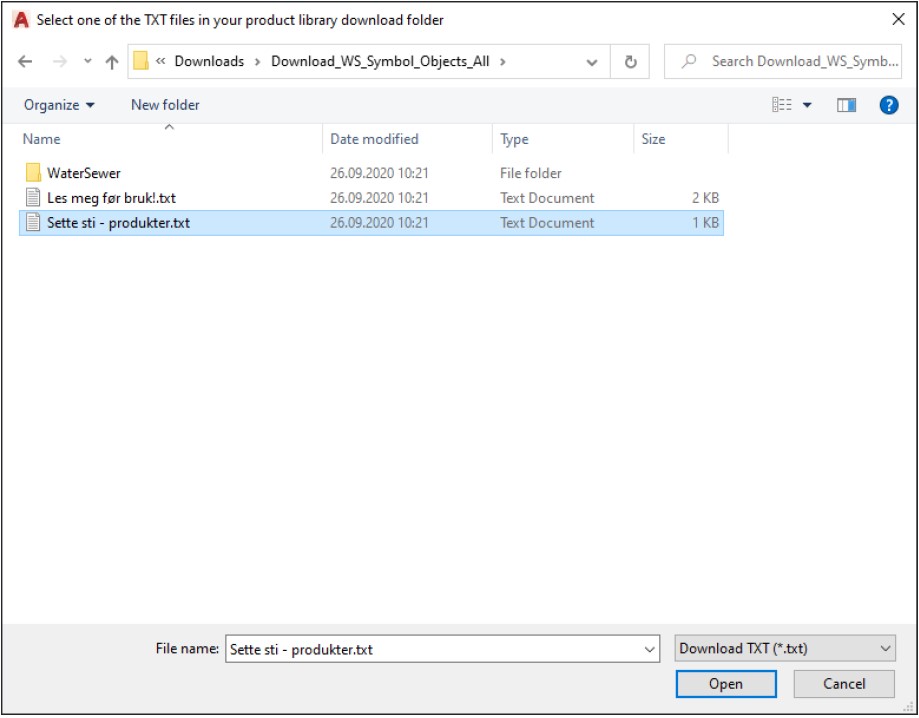

2. Navigate to the extracted folder containing the Product Library. Click on “Set path” text document and “open” to define path.

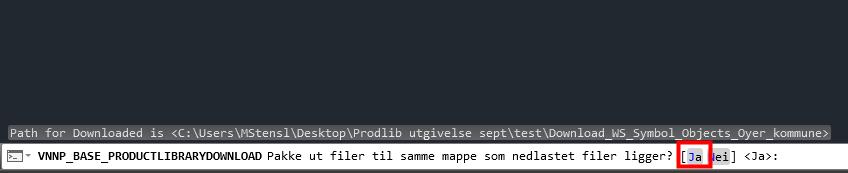

   NOTE: If you are using a older versions than Novapoint 2020 FP1, click “yes” and “Enter” for the command in AutoCad. In Novapoint 2020 FP1 and newer versions this is done automatically.


About municipal libraries

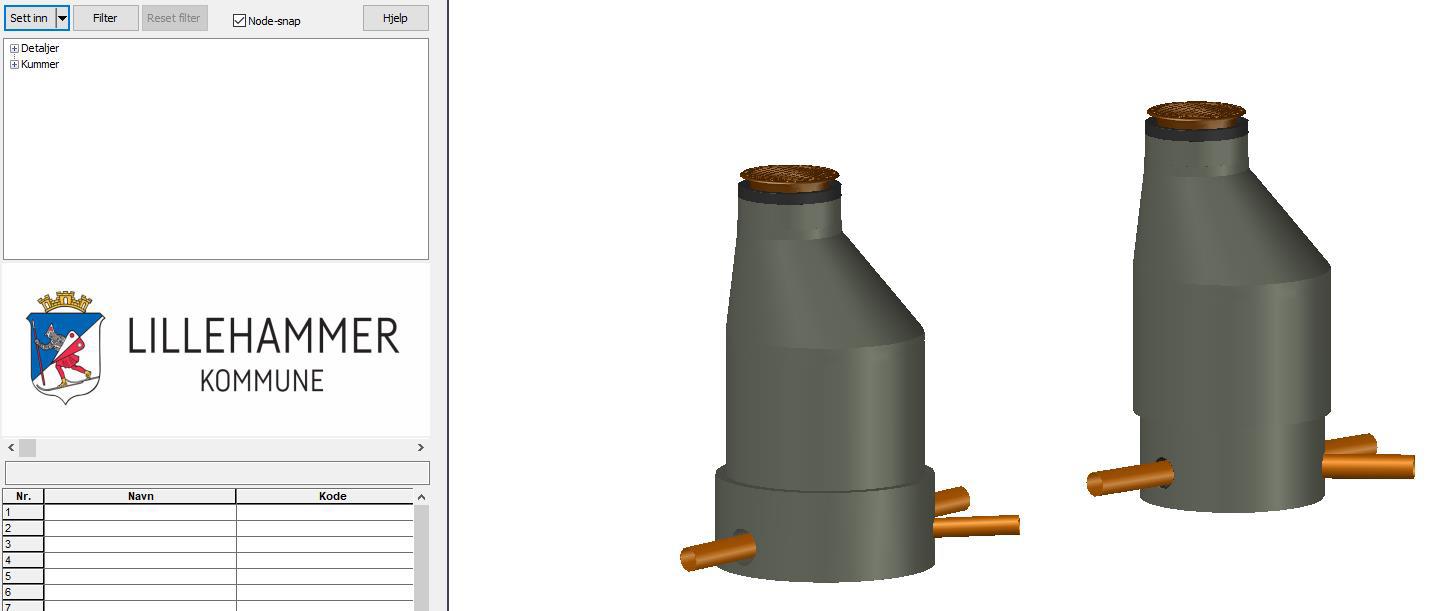

Some Municipalities have uploaded a selection of completed models. You can change between the municipal libraries and the supplier library as you wish. This can be done by changing the path.

Important to know:

1. Municipal libraries contain several assemblies. The models are big, so give the program some time to load products.
2. This is sample drawings and are not to be used for further drawing or to generate bill of materials (BOM).
3. The meaning with these drawings is to better visualize desired solution/standardization.
4. Reservations are made if there are any geometrical or project errors. Contact the municipality for any questions or clarifications.
5. It is referred to local water and sewer norms and other rules/standards.
6. If you are experiencing lag, make sure your computer fulfils the minimum requirements and uses the correct graphic card
