Mechanical Grab

EC520 Standard driver

Create the attachment in the EC520 Tech UI using the normal bucket measure-up and calibration.

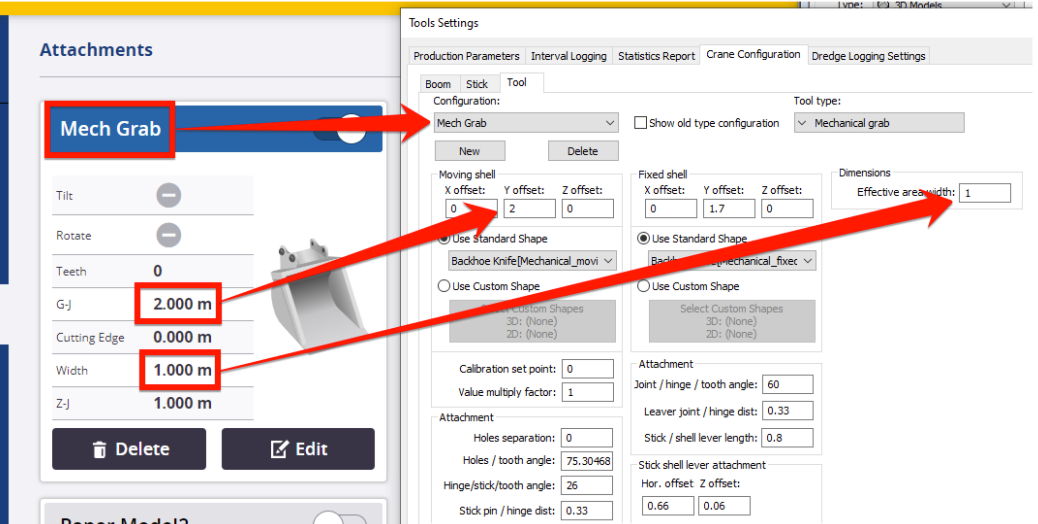

EC520 Measure-up

• Point J is the tip if the ‘Moving Shell’
• G-J is used by the EC520 driver to populate the ‘Moving Shell’ Y Offset
• Width is used by the EC520 driver to populate the Effective Width

NOTE: These values can be edited in TMC but will be overwritten by the EC520 driver so should only be edited in the EC520 Tech UI.

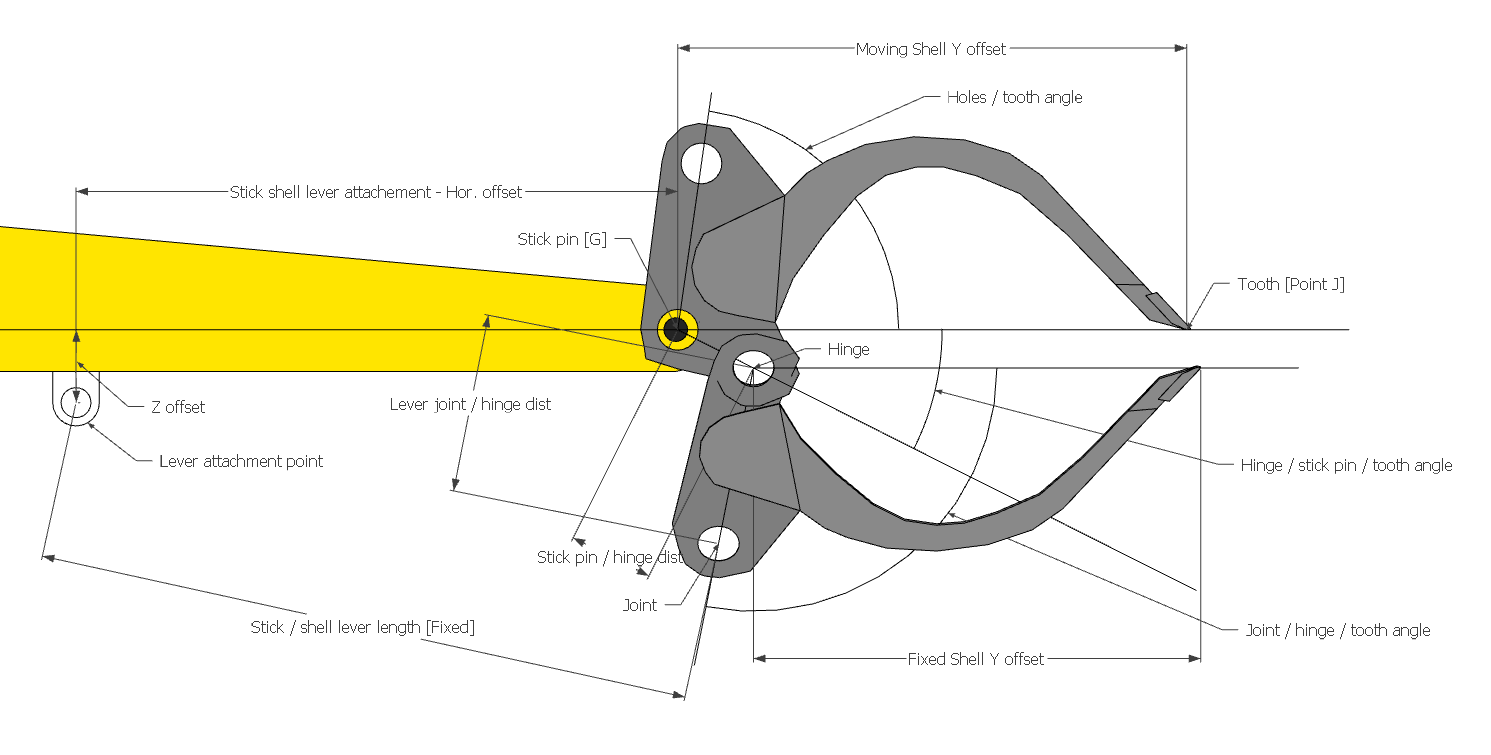

TMC Measure-up parameters
