Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

  • 1.  Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-09-2018 06:09

    Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.



  • 2.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-10-2018 10:18

    What are you trying to select and what do you want to label?



    The Material Layers ultimately end up as Surfaces (Subgrade surfaces) which can be labeled I believe - I am not sure what you are trying to do here - can you describe the workflow that you are trying to achieve and what you want the end result to be so I can better answer the question here.



    Apologies that I am missing the underlying question here



    Alan



  • 3.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-10-2018 12:40

    Hi Alan,



    Thank you for responding. What i'm trying to achieve is design a smart text that will allow that will display the individual site improvement material layers in order to create a CDP (Construction Design Plan) drawing.



    Also is it possible to achieve this in Plan Sets and not it Plan View.



    Kind regards,



    Bruce

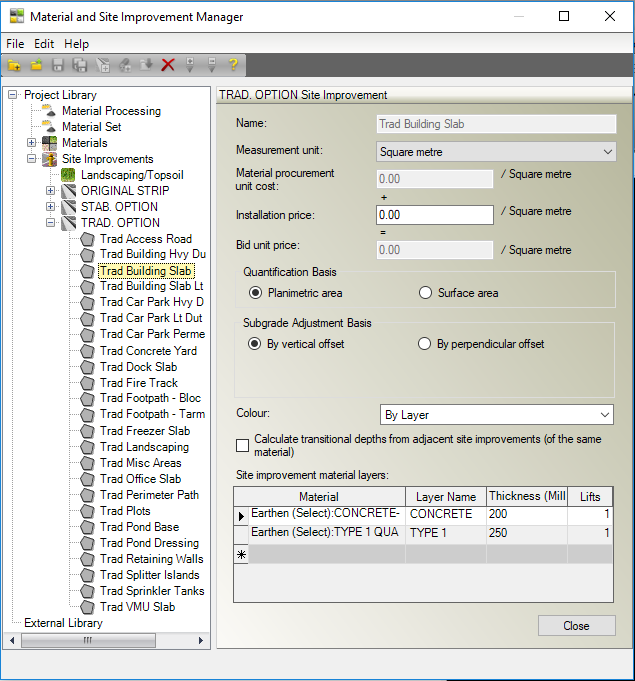

    Material and Site Improvement Manger_Screen Shot



  • 4.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-10-2018 12:46

    Bruce

    Could you email me your phone number - I would like to call you so I can better understand your need



    alan_sharp@trimble.com



    or you can call me on 303 635 8556 directly



    Thanks



    Alan



  • 5.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-11-2018 09:53

    Bruce

    Thanks for your time on the phone today - awesome to meet you and get this discussion underway. For anyone else watching this thread I have a question.

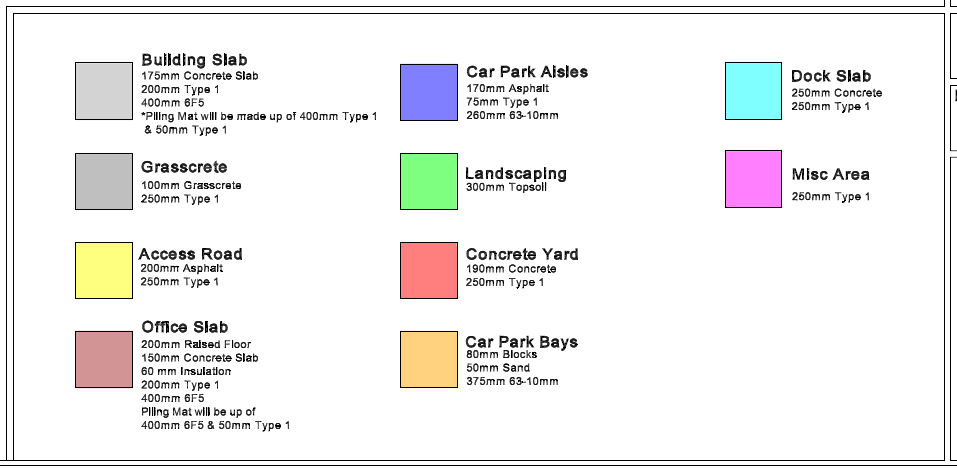

    What Bruce is asking for is the ability to create a Site Improvement Legend on a Drawing Submittal (a bit like the Cut Fill Map Legend but different) that captures all of the Site Improvements applied in a Takeoff  / Site Model and creates a Legend Block that can be placed directly on a Drawing Sheet or Dynaviewed to a drawing sheet that shows something like this for each Site Improvement used. He wants that to be Dynamically updated as Site Improvement Material Layer Thicknesses change or if additional material Layers are added or if new Site Improvement Areas are added after the Site Improvement Legend is created.





    The Squares would be filled with the applied site improvement color (in the Map of the project)



    The Site Improvement Name followed by the Site Improvement Layers and Layer Thicknesses placed automatically using Smart Text that updates or can be refreshed whenever changes have been made.



    Do others out there have the same need - I think it is a great idea / request and would like to gauge the interest from others out there doing similar work.



    Bruce's company does Site Engineering Design for their clients and this is a deliverable, however I could also see this as a Drawing that I would give a Foreman on site to know what was expected in different areas of the job.



    Great to hear a British accent again Bruce! - appreciate your time and assistance in helping me to understand the requirement



    Alan



  • 6.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-11-2018 10:30

    @Alan Sharp yes. This is something I have asked for myself. It is useful for passing on information to someone who is not using CAD; presentations, deliverables, takeoff verification.



    brucewisternoff@hotmail.co.uk">Bruce Wisternoff Thanks for asking this! I would have forgotten until the next time I needed it and been in a bind.



  • 7.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-18-2018 08:16

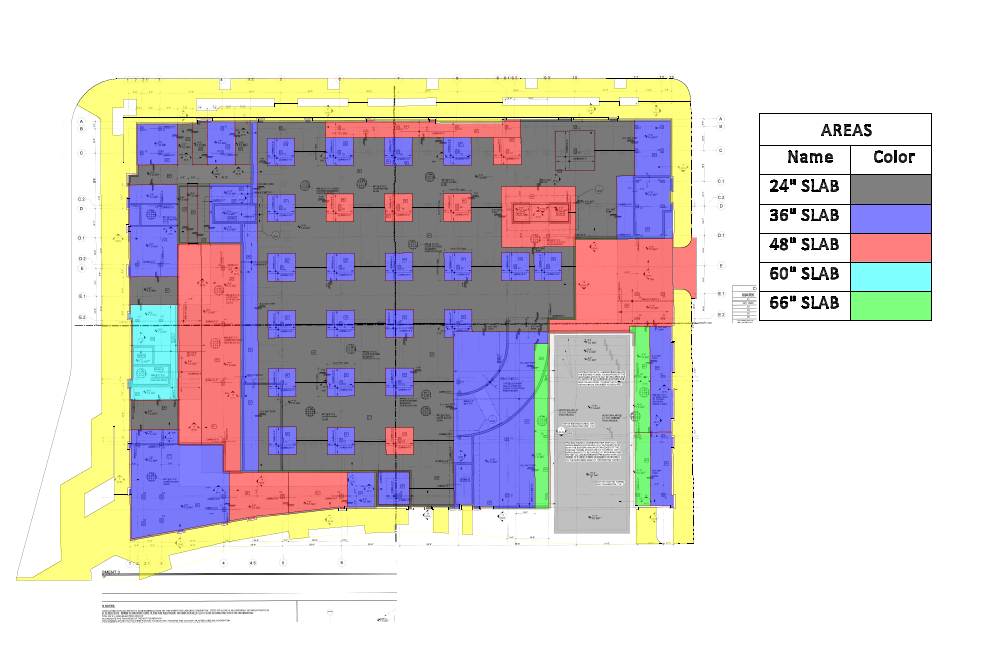

    Yes @Alan Sharp! I actually have been having to do this manually. Generating a label table and exporting/importing it then explode it to edit it. It would be awesome to have a color type map reference.





  • 8.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 10-11-2018 11:05

    No surprises there then Pat



    Alan



  • 9.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 11-13-2018 15:35

     I have been building a chart myself too and adding it into my takeoff reports. I would love to see this in the program. This question was asked during my Civil Takeoffs From Dirt to Dollars presentation at Dimensions.



  • 10.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 11-30-2018 01:56

    Just want you guys to know that I haven't forgotten y'all



    Hopefully we will have something for you in the New Year .....



    Alan



  • 11.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 11-30-2018 21:25

    Bruce

    Christmas may come in January for this one - but I wanted to share a video with you

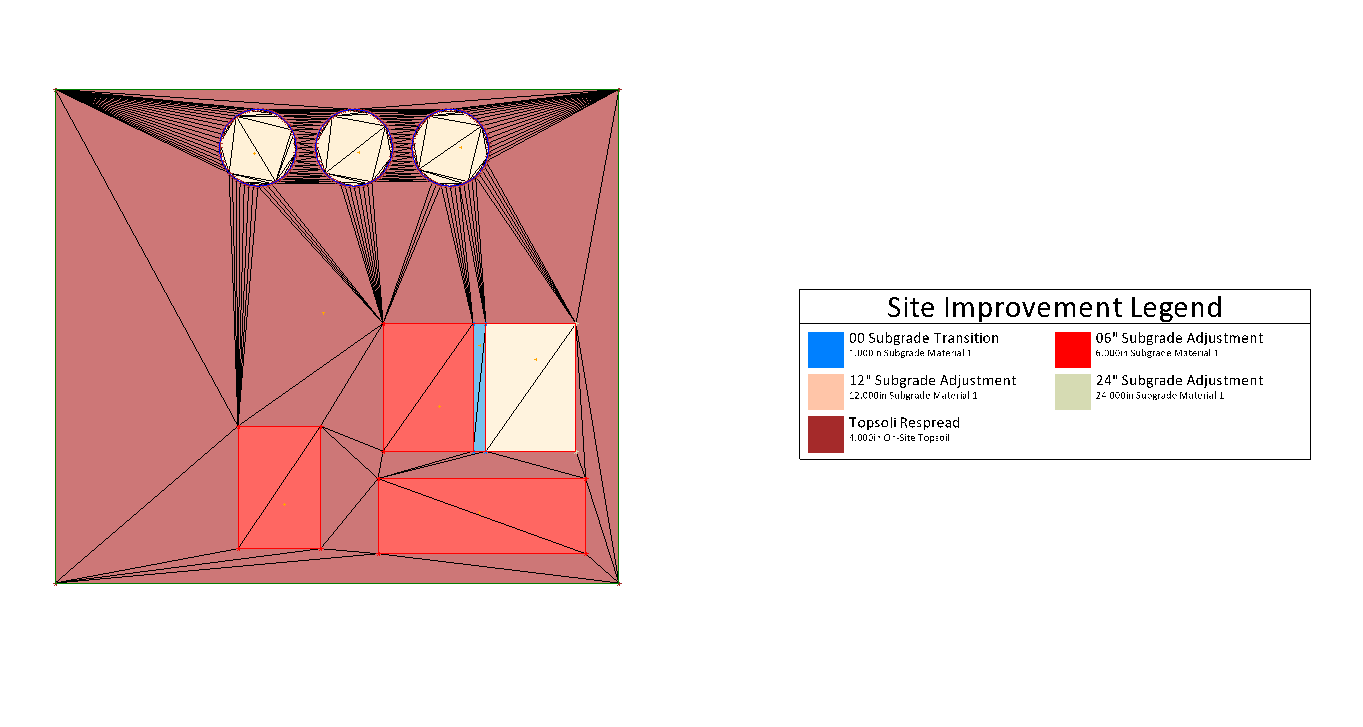

    I think we are real close to having what you wanted in terms of a Site Improvement Legend



    Let me know what you think





    Alan



  • 12.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 05:29

    Awesome. The legend looks good and the workflow looks simple. Will the legend also recognize textures?



  • 13.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 06:17

    I will try that



    On Sat, Dec 1, 2018 at 7:29 AM plheureux@severinotrucking.com <



  • 14.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 08:54

    That is great!! I will tell my class next week about it.



    Thanks for the help Alan.



  • 15.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 09:06

    Having one for demo materials would be awesome too.



  • 16.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 09:21

    You just pick the reference surface i.e. oG or FG and you can create as many Legends as you want (over and above yourself that is)



    Alan



    Sent from my iPhone



  • 17.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 09:44

    No Alan you are the Legend!! I am just helping to spread your knowledge and wisdom.



  • 18.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 12-01-2018 10:16

    LOL



  • 19.  Re: Is there a SMART TEXT code for just the Material Layer for layer within the MSI manager. There is a command for Material Layer Thickness (MT) for the overall thickness but not individual layers.

    Posted 01-18-2019 15:36

    Please check out the TML named SiteImprovementLegend" that was posted today. You should get the 5.0 patch first (which was also posted today)
