GNSS Precise Orbit

  • 1.  GNSS Precise Orbit

    Posted 09-16-2018 20:49

    Does anyone know why TBC hasnt yet introduced the precise orbit (sp3) info for QZSS and Beidou?

    The G, R and E orbits are covered for rapid and final orbits but china's satellite system is fully operational and not compatible.

    Anyone know if this is being planned for a future release?



  • 2.  Re: GNSS Precise Orbit

    Posted 09-24-2018 06:37

    Currently the IGS only generates precise GPS and GLONASS orbits, but they have run some pilot projects to generate GALILEO, BeiDou and QZSS orbits / clocks as well. It is unclear when the IGS will officially start producing precise orbits and clock products for all constellations.



    Trimble is looking at alternatives.



  • 3.  Re: GNSS Precise Orbit

    Posted 09-24-2018 22:23

    Now my follow up question is why limit orbits, clocks and erp to IGS when there are several analysis centres.



  • 4.  Re: GNSS Precise Orbit

    Posted 09-25-2018 06:26

    If you have the URLs for centers where you know there are precise orbits for Beidou and QZSS, could you share them?



  • 5.  Re: GNSS Precise Orbit

    Posted 09-28-2018 23:39

    Analysis Center, GFZ

    GNSS IGS Analysis Center



    Analysis Center, ESA

    GNSS based products - OPS-GN (Public)



    JAXA, QZSS

    MADOCA & RINEX



    UCSD

    ftp://garner.ucsd.edu/pub/products/



  • 6.  RE: Re: GNSS Precise Orbit

    Posted 12-10-2020 00:32
    Richard

    Ive encountered a limitation with importing SP3 files.

    Namely sp3-c and sp3-d files.

    From my testing TBC (v5.2) is unable to properly parse sp3-d files to extract the correct number of satellites and the correct constellations.

    Would you know if Trimble is working on a fix?

    ------------------------------
    aaron bundy
    ------------------------------

    Original Message


  • 7.  RE: Re: GNSS Precise Orbit

    Posted 12-10-2020 01:04
    https://mega.nz/folder/XiRDFKhb#LKmktHPk5poBljEJfPGuoQ

    These are the SP3 files i tested

    ------------------------------
    aaron bundy
    ------------------------------

    Original Message


  • 8.  RE: GNSS Precise Orbit

    Posted 12-16-2020 15:57

    Hi Aaron,

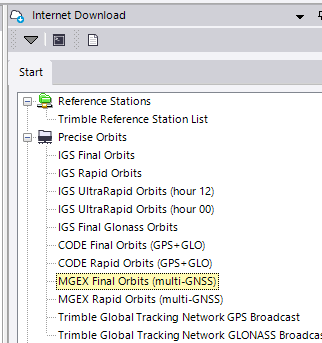

    TBC has supported the new IGS product MGEX probably from version 5.3x, and that product includes all current GNSS constellations, including Beidou and QZSS.



    ------------------------------
    Rui Wu
    ------------------------------

    Original Message
