Single station label on a HAL/Alignment.

I'm not finding how to label single stations on a HAL/Alignment. I can get the HAL major alignment points and intervals to label but how do label specific stations at along the alignment?

You would have to create polylines at those locations and then label them manually using smart text Darrin.There is no ability to define additional label locations in the Alignment labeling function. I typically define those in Excel with a Station and Offset for the Left and right side and then import the points and create lines from the points and then label those lines with a Station Label using smart text code @<S,T,F>@

Alan

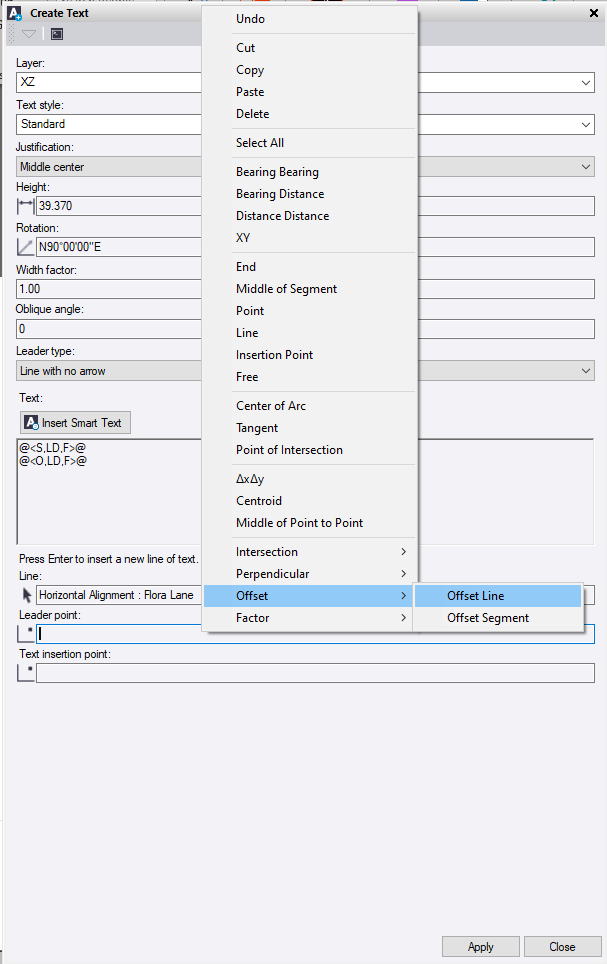

Smart Text >  Leader Type  > Station and Ofset > Right Click in the Leader Point Box > Offset > OffsetLine.

It would make sense for minimal Station Labels.
