Cross Sections not population in my Build Set

  • 1.  Cross Sections not population in my Build Set

    Posted 04-30-2019 17:32

    Cross Sections are not building in my Sheet set past the first station 400+00



  • 2.  Re: Cress Sections not population in my Build Set

    Posted 05-01-2019 04:14

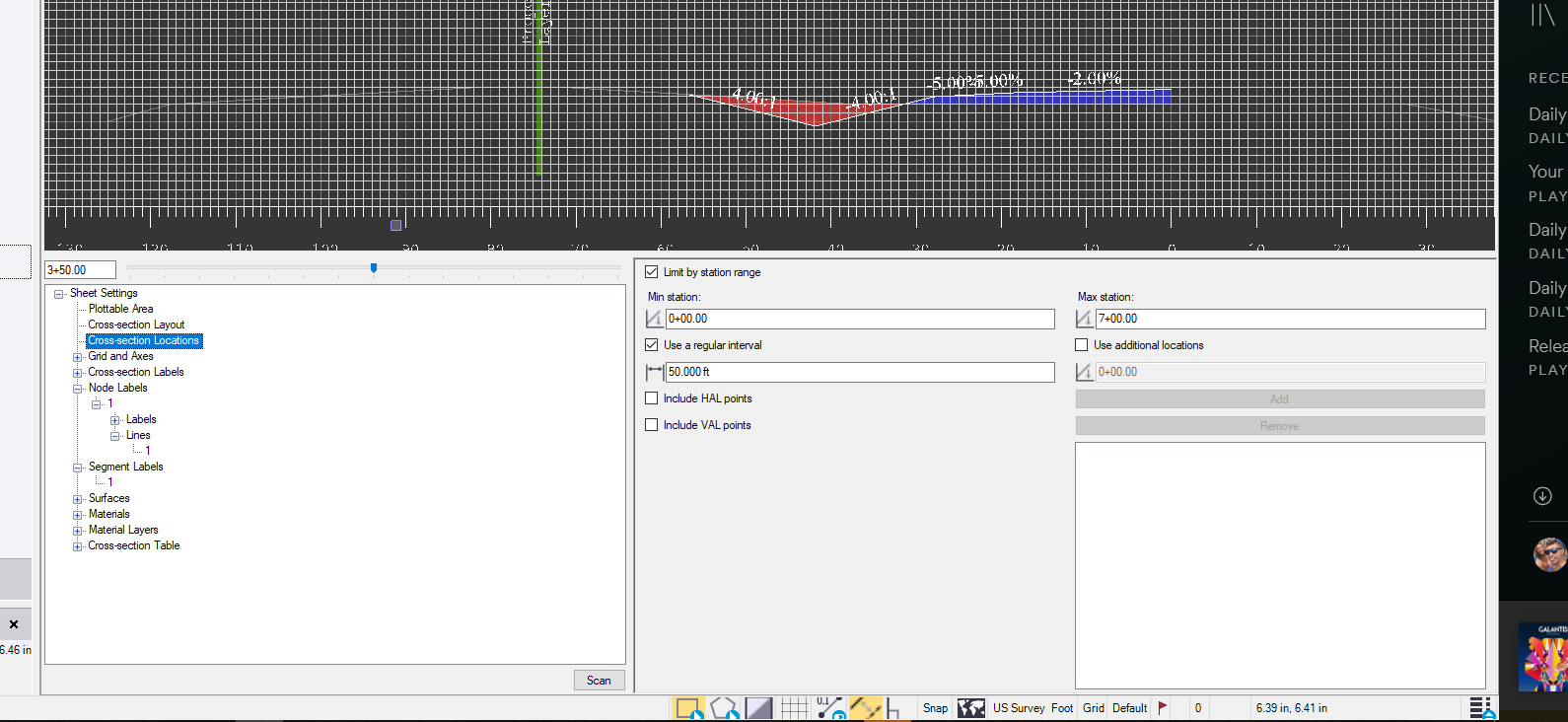

    Can you send a snap shot of the Cross-Section Locations settings?





  • 3.  Re: Cress Sections not population in my Build Set

    Posted 05-01-2019 09:05

    Pat is on the button here Ryan - the Cross Section Locations setting may be limited to just a part of the Station Range for your project - you may need to change those settings to report all stations for the project. Let me know if that does not fix the issue.



    Please confirm that you are good to go now.



    Alan



  • 4.  Re: Cress Sections not population in my Build Set

    Posted 05-01-2019 12:18

    Hey Guys a gentleman in Australia helped me figure it out last night.



  • 5.  Re: Cress Sections not population in my Build Set

    Posted 05-01-2019 12:20

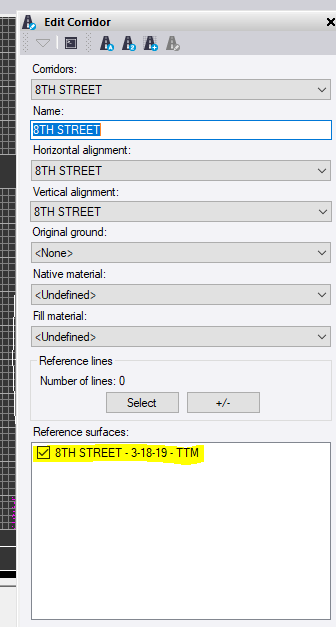

    Fixed mate, you didn’t have a surface associated with the corridor. Make sure the surfaces you want to reference are ticked in the edit corridor menu.. It seems that my Corridor did not have the correct surface box checked.





  • 6.  Re: Cress Sections not population in my Build Set

    Posted 05-01-2019 12:30

    Ryan

    Based on this response I guess you had a HAL and the Surface Model and you wanted to plot Cross Sections - so you created the Corridor and then did not add any instructions to the Template - if you had added this surface that you referenced as a Surface Instruction you would have got the same result - however you can of course also do it this way.



    Typically the Reference Surfaces are used to display "Additional" surfaces in the Corridor Template Editor - e.g. Existing Ground, Strata Layers etc. and the Template Instructions create the Finished Grade, Subgrade Layers etc for the Design Model.



    Adding a Reference Surface basically tells the Corridor Model to slice the surfaces listed and checked at whatever station is being displayed in the Template Editor - the displayed surface slices are termed "Surface Cross Sections" and have properties etc that you can review if you click on the line in the Template Editor.



    Because the Corridor has "Sliced Reference Surfaces" they can be plotted using Cross Sections, however a reference Surface cannot be directly used to give Cut / Fill Volumes or Sectional Areas - for that they need to be added as a Surface Instruction in the Template.



    Hope this helps



    Great to have you on the Community and in the TBC Power Users Group - Welcome ....



    Alan
