Lines showing different places in planview and plotview.

  • 1.  Lines showing different places in planview and plotview.

    Posted 02-14-2019 12:55

    Hi!



    I have a line that shows up different depending if i see it in the planview or the plotview. In the plot it also shows up wrong.



    Line shows up wrong in plotview and in plot - YouTube





  • 2.  Re: Lines showing different places in planview and plotview.

    Posted 02-14-2019 23:21

    Hi!

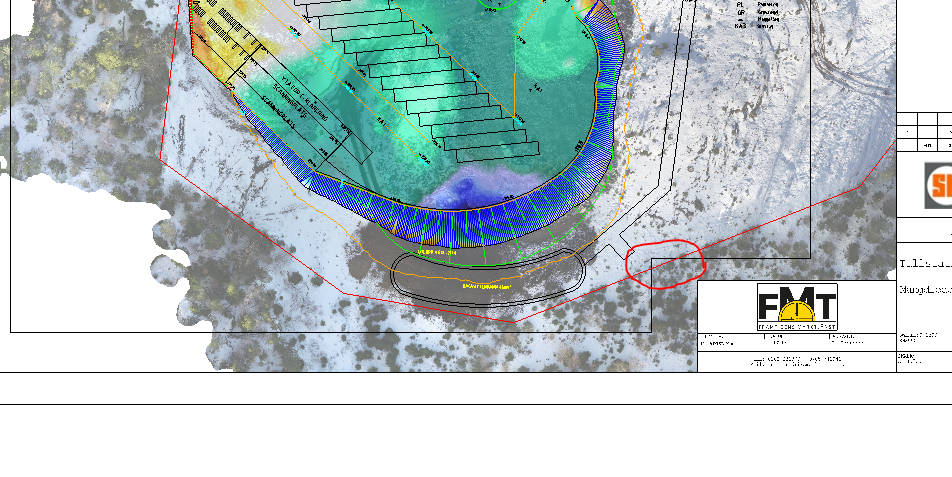

    I think I found the problem. I created a new plotbox with scale 1:1000 insted of the old one that was 1:800. As the screendump shows, the old plotbox cuts the problem-line were our logo is placed. It seems like that causes the line to change into a different position in the  sheet view. It´s still an issue though.



  • 3.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 00:31

    Thanks magnus@fmtmark.se">Magnus Bengtsson, that solved the problem!!!



  • 4.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 12:29

    What kind of line was it - a Boundary, Linestring, Polyline? or ...



    I need to try and reproduce that



    Alan



  • 5.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 12:40

    Linestring.



  • 6.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 13:50

    Please send me the file - you are evidently double or triple clipping the line and the key nodes are being clipped away and it is getting the resulting shape wrong



  • 7.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 13:59

    Dropbox - Töcksfors - Simplify your life



    Its the project  "Töcksfors" not "Töcksfors 2018".



  • 8.  Re: Lines showing different places in planview and plotview.

    Posted 02-15-2019 14:04

    This is one of the projects that i am having trouble with the plotting because things shows up in the plot that should not be there. Because of that i have made a plotbox for every plot, is that the problem? That i have more than one plotbox at the same spot?
