Import TXT and DXF result

  • 1.  Import TXT and DXF result

    Posted 01-29-2019 03:28
    Good morning,  I have a simple txt file consisting of: CARI1,4875025.82,800099.27,40.43 CARI2,4875724.92,797968.47,40.41 etc .. Name, North, East, Height It's possible after uploading this txt file to TBC can be exported to dxf with assigned
    the visible name, in this case CARI1, etc .. that I can later edit this text in Autocad?  Thanks Alessandro


  • 2.  Re: Import TXT and DXF result

    Posted 02-04-2019 14:19

    Hi Alessandro, you can label the points with point ID from Drafting -> Label Points, then export both points and labels to DXF.

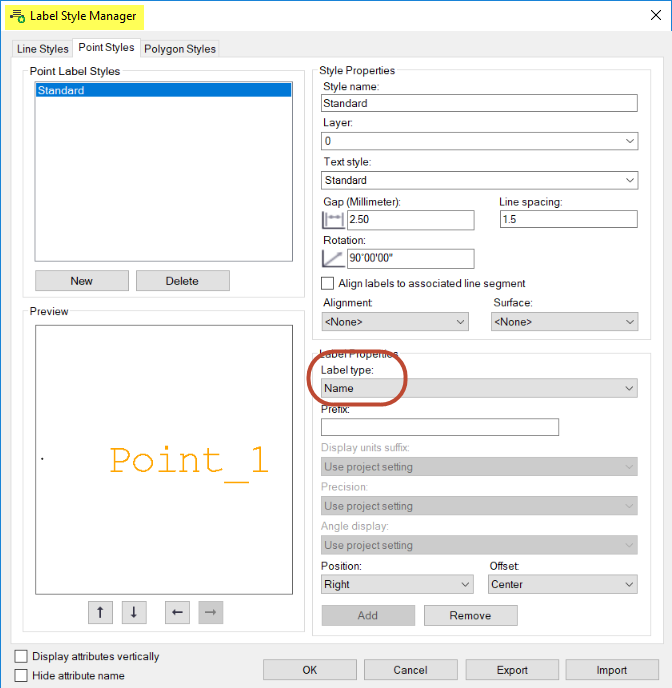

    To edit what labels will be used, visit Label Style Manager.



    Thank you.

    Rui
