Profile Viewer slope info

  • 1.  Profile Viewer slope info

    Posted 02-20-2020 17:22

    Can the profile viewer display the slope info?



  • 2.  Re: Profile Viewer slope info

    Posted 02-25-2020 09:18

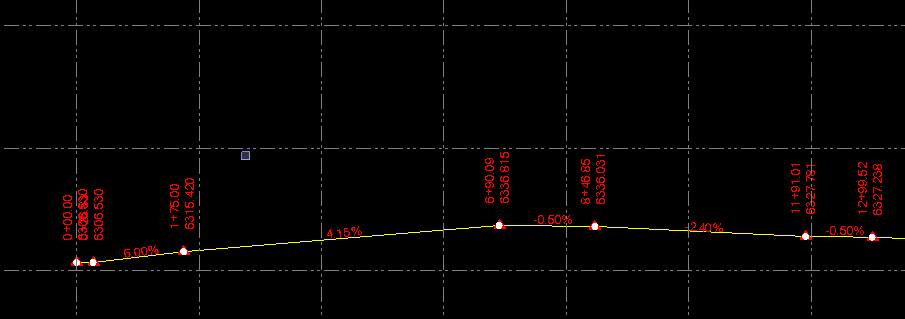

    Profile view should show the information Maybe check the properties of it and see if "Label in view" is "Yes"



  • 3.  Re: Profile Viewer slope info

    Posted 02-25-2020 10:27

    The Profile Viewer for a Linestring does not currently show the slope of the elements. You can use Explore Object and click anywhere along it in the profile Viewer and see the slope (instantaneous slope) of the line if you need it. I will add it as a request to get the Slope values displayed on the segments in the profile Viewer



    Alan
