Trimble Business Center

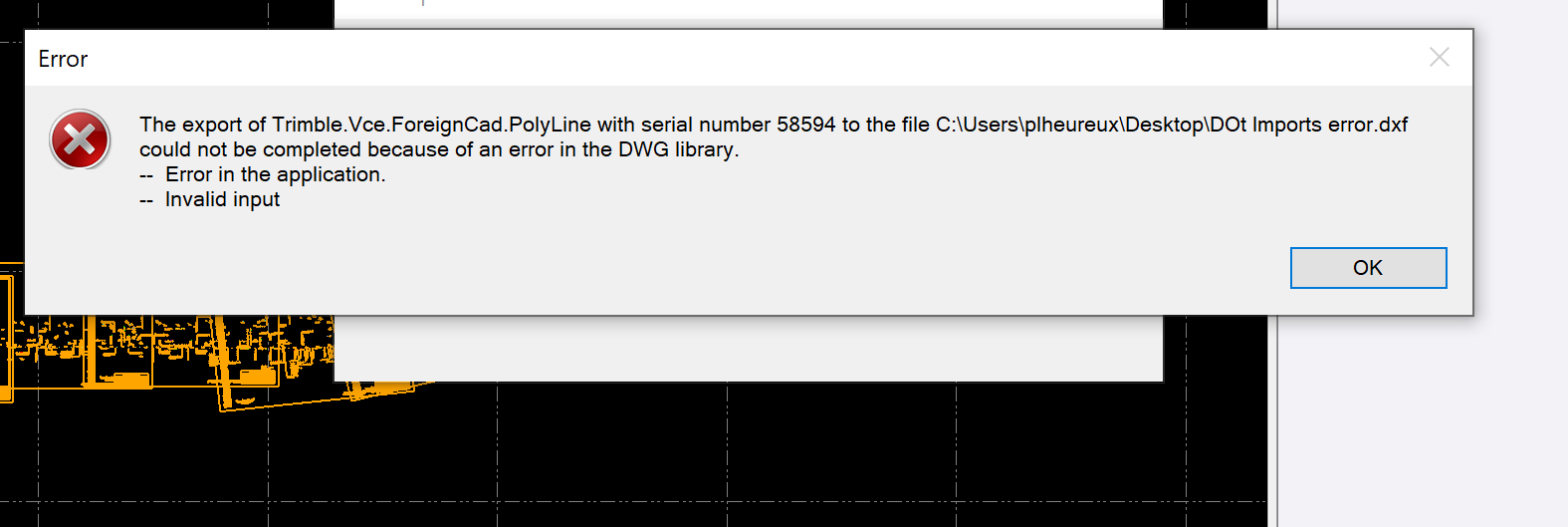

I am receiving the following error message when trying to export the linework in the attached vcl as a dwg or dxf.

The linework is imported vector data from vector pdfs.

Thank you!

I was able to export it with no errors

Rackstation - Synology RackStation

I did a complete uninstall of 5.20.2 and reinstalled and I am still seeing this error message.

This was using the file attached above.

Ok, I zoomed extents and "Window Selected" everything and I was able to export a .dxf file. BUT when i use the "Select All" function i get the same error. So then I compared the total number of objects to both selections, I noticed a difference of 250 objects. In the properties window you can see that 250 CAD multi line text is selected when selecting all. Once i filtered those objects I reviewed the properties and I noticed they have a rotation, northing and easting of question mark (?). I changed the rotation to 90 deg and than exported them but now when re-imported they have a insertion point of 0,0 but they did retain the original layer and text for each object. I am also running TBC 5.20.2.

Thanks for looking into this. I just tested using your steps and that is indeed what the issue is.

I cannot figure out how those text items got "?" for their rotation.

I tried:

• reimport sheets
• import vector pdfs as sheets
• transform by points
• move
• project cleanup
• convert to linestring
• explode

None of these seem to reproduce the issue.

I will have to keep an eye on this but at least i know what the cause of the error in the export is now.
