Smart text - Codes - Utility Line Elevation

  • 1.  Smart text - Codes - Utility Line Elevation

    Posted 02-23-2020 08:19

    Are there a smart text codes for utility line elevations that I am missing to get the invert elevation of the pipe?



    I would like:

    • Top of Pipe
    • Crown
    • Center line
    • Invert
    • Bottom of Pipe



    You can get this data with the object explorer.

    #enhancementrequests





    I am creating a request for change and I need to label this data in order to send it off to get approved.



  • 2.  Re: Smart text - Codes - Utility Line Elevation

    Posted 02-23-2020 08:29

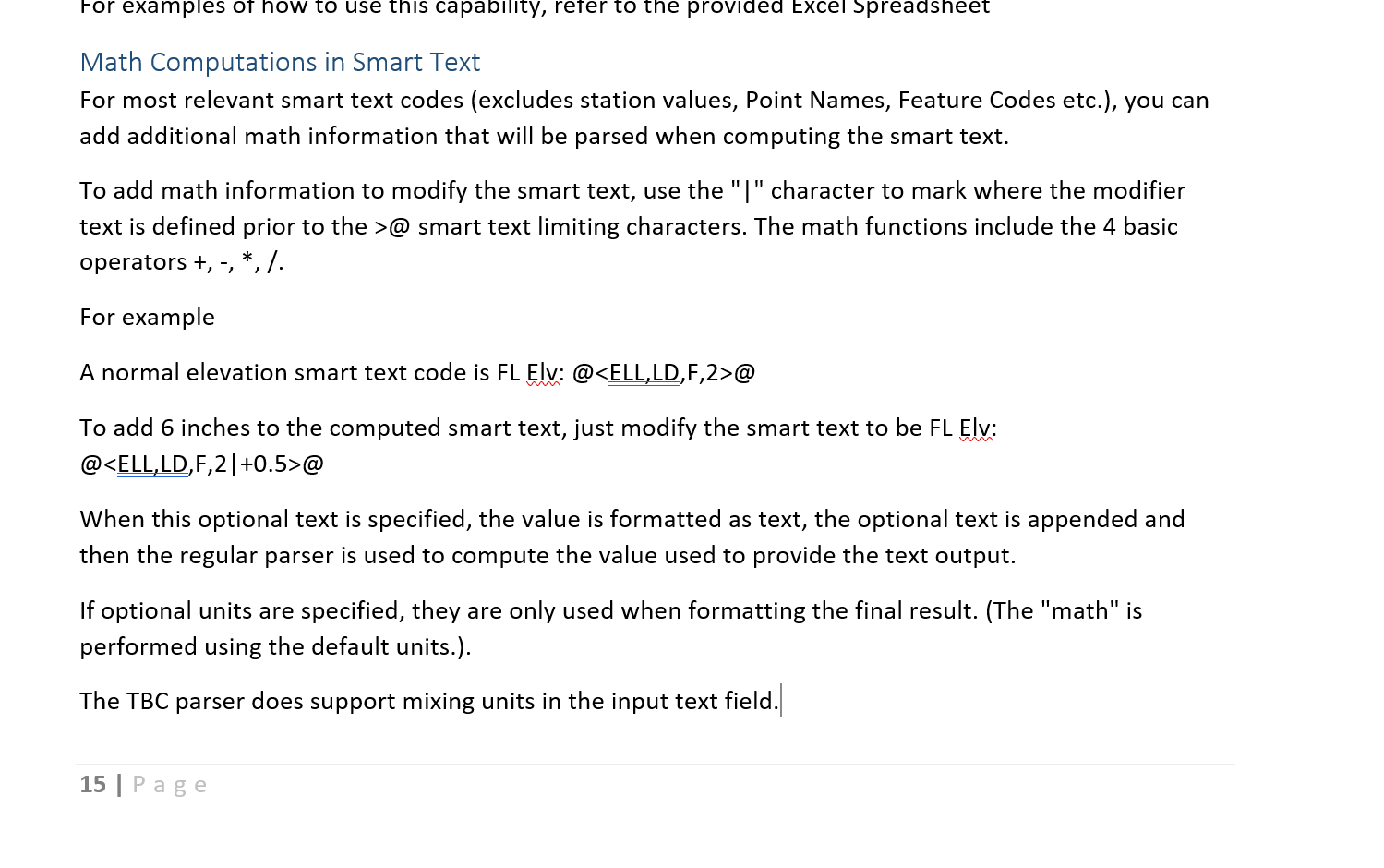

    It looks like you can use line elevation but you have to use a math function to get down to invert elevation because the elevation that is given is at centerline of the pipe.



  • 3.  Re: Smart text - Codes - Utility Line Elevation

    Posted 03-23-2020 12:33

    Would you mind sharing what that smart text looks like with the math function? I'm trying to get a callout as simple as low elevation and high elevation.



  • 4.  Re: Smart text - Codes - Utility Line Elevation

    Posted 03-24-2020 03:05
