How to manipulate the display sequence of CAD elements

  • 1.  How to manipulate the display sequence of CAD elements

    Posted 01-31-2020 06:13

    Hello

    I need to manipulate the display sequence of areas. I have to cover some CAD elements, which are below the subscription stamp. How can I manage it? #display sequence cover areas



    kindyl regards

    Frank



  • 2.  Re: How to manipulate the display sequence of CAD elements

    Posted 02-12-2020 09:31

    Use LayerManager and set the "Display Priority" to "Background" for the stamp layer. That will cause the other linework to be "on top" when drawing.



  • 3.  Re: How to manipulate the display sequence of CAD elements

    Posted 05-20-2020 19:59

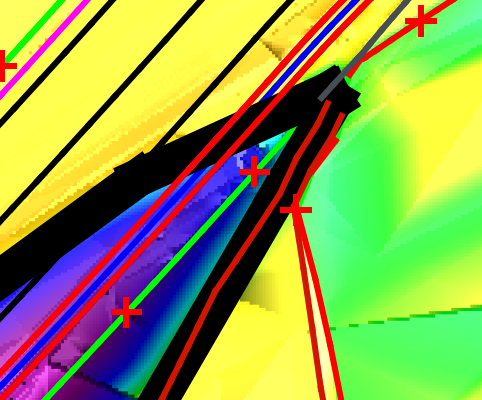

    There seems to be a bug, at least in V5.30, in applying the display priority settings to sheet views and PDF plots.





    white line set to background

    other color lines set to foreground

    white line set to foreground

    other color lines set to background

    Plan View

    (thanks to no plan view rotation)

    is correct

    is correct

    Sheet View

    refreshed

    is false

    the same as before, by chance correct

    PDF

    correct, by chance

    same as before, now false
