Moving Point Labels?

  • 1.  Moving Point Labels?

    Posted 01-18-2017 09:34

    Is there a way to move (drag) the point labels for legibility in TBC like you can in Civil3D and Terramodel?



  • 2.  Re: Moving Point Labels?

    Posted 01-18-2017 13:18

    Hey Mark,

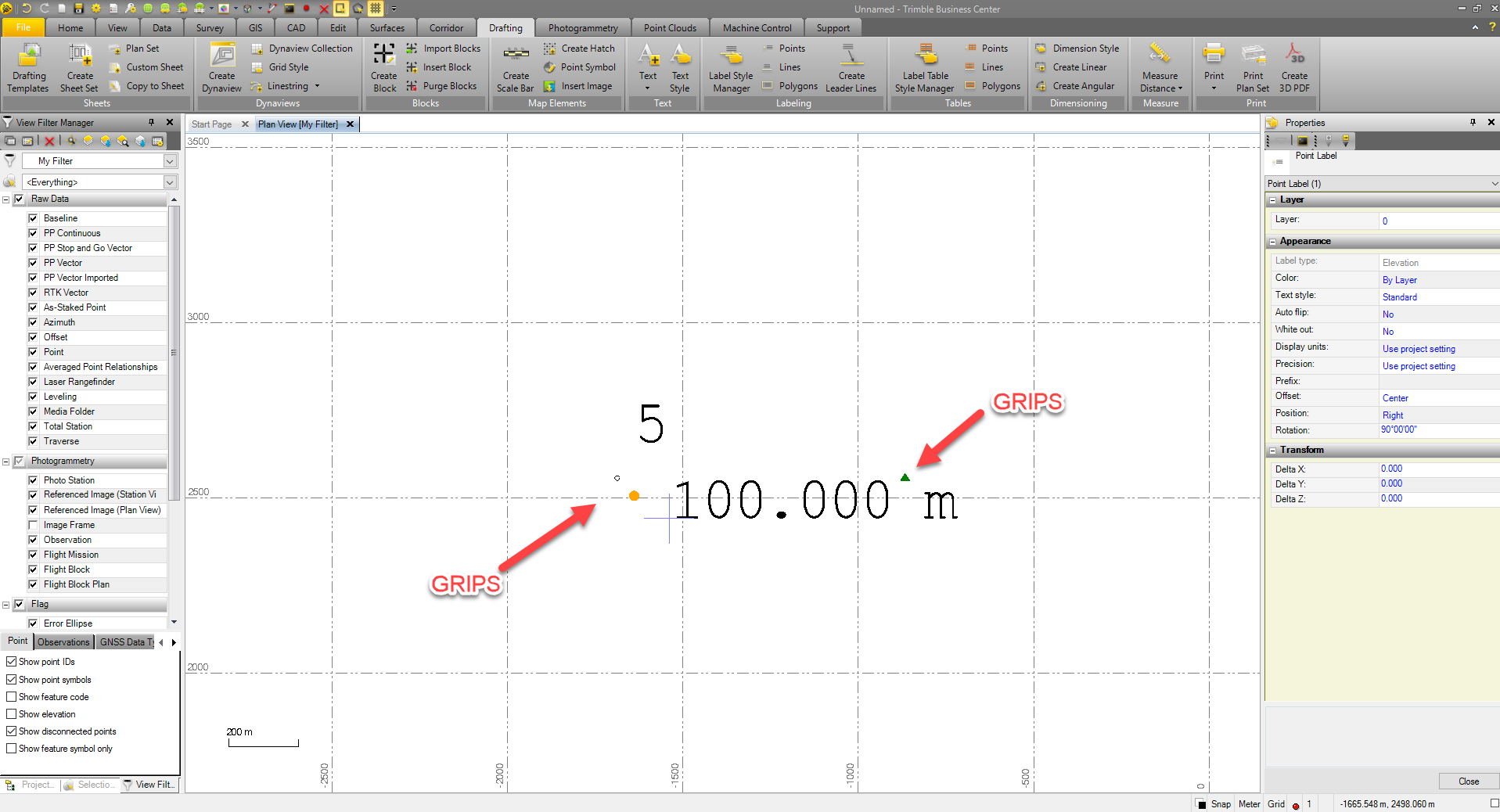

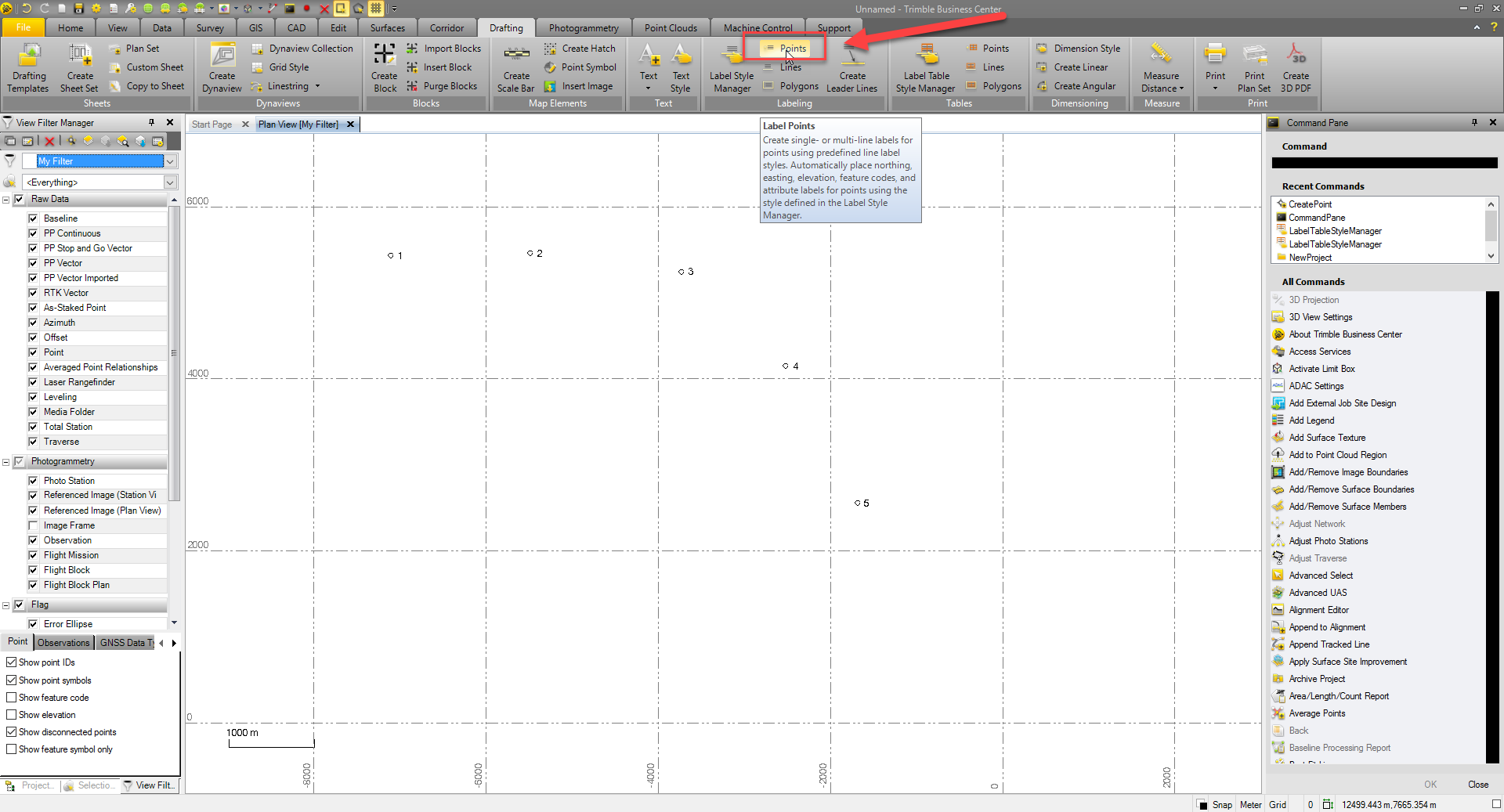

    For points there are two types of labels:  Those that are automatically generated and ones that are added later.  With the automatic point labels you cannot move or rotate the label.  Simply create point labels using the Point Label Command.  These labels act similar to AutoCAD labels in the fact that you can drag them using grips.  See images below.







    Cheers,







    Riley Smith



  • 3.  Re: Moving Point Labels?

    Posted 01-18-2017 16:21

    Awesome! Thanks.  I'm just getting in to the drafting module even though I've had it for 6 months.
