Problem with C/F maps and legends in Sheet view and while plotting.

  • 1.  Problem with C/F maps and legends in Sheet view and while plotting.

    Posted 12-06-2019 04:09

    Any one else experienced this problem when using C/F maps in the sheet view. Every C/F map i use in my dynaviews is showing almost the opposite colour grading if not as in this case, it turns almost everything white.



    If i print this sheet it will be as in the sheet view and not in the plan view.

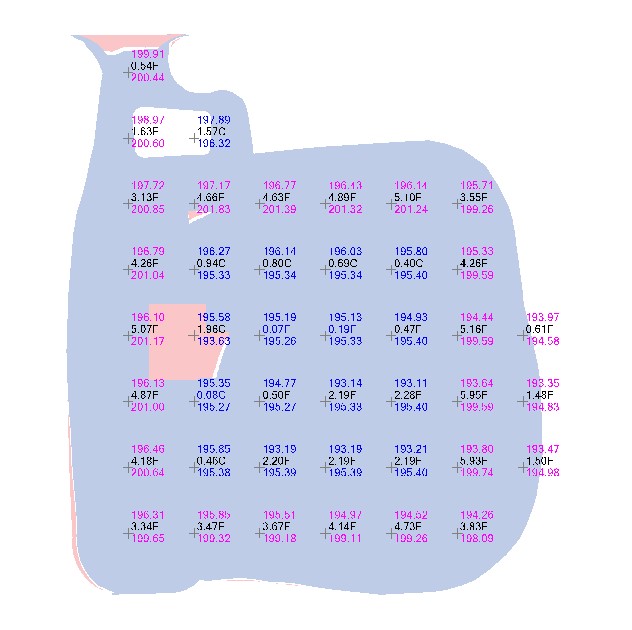

    Right side is sheet view and left is the plan view,



    It all started with the latest update TBC 5.20



  • 2.  Re: Problem with C/F maps and legends in Sheet view and while plotting.

    Posted 12-12-2019 12:55

    I have just upgraded to 5.20 and have a slightly different issue with the cut fill maps. I have 2 different CF maps (with different colour schemes) shown in plan view, to help distinguish between building and landscaping areas. The colours show up correctly in plan view, but when I view them in sheet view/plot them it only shows 1 colour scheme.

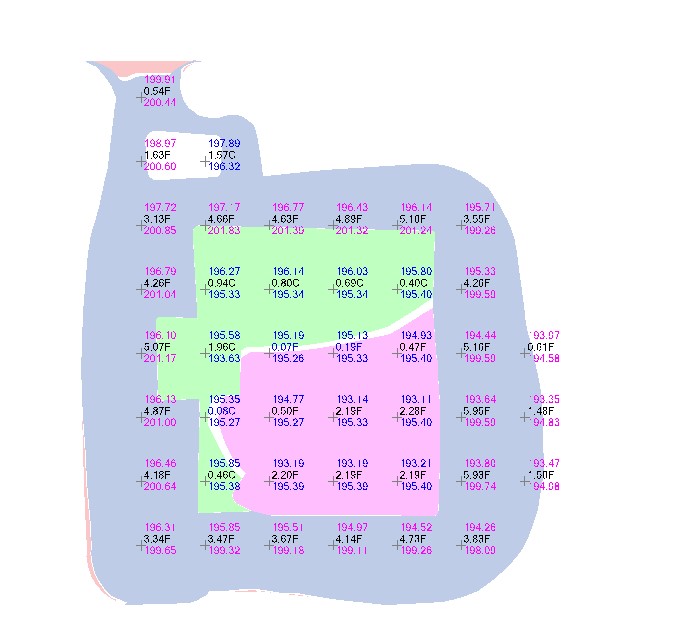

    The top image is plan view, the bottom is sheet view.







  • 3.  Re: Problem with C/F maps and legends in Sheet view and while plotting.

    Posted 12-13-2019 09:24

    This is a bug introduced by changes being made to the graphics display.  Watch for an upcoming  patch once we finish testing.

    tim
