Selection: Is there a way I can select points with a feature code and draw a polyline connecting them?

  • 1.  Selection: Is there a way I can select points with a feature code and draw a polyline connecting them?

    Posted 04-17-2017 02:26

    I have imported an ASCII file with PNEZD.

    I now intend to connect points with code "ExCL" in the order of observation to form a Polyline (2D or 3D).

    How do I do it.

    I have TBC 3.82.



    Thanks.



  • 2.  Re: Selection: Is there a way I can select points with a feature code and draw a polyline connecting them?

    Posted 05-05-2017 15:09

    Hey Saif,



    Are you using a feature code library to collect the data (FXL file) ?  If this is the case, you can import the FXL file into the TBC project and use the "Process Feature Codes" command to automatically generate lines.

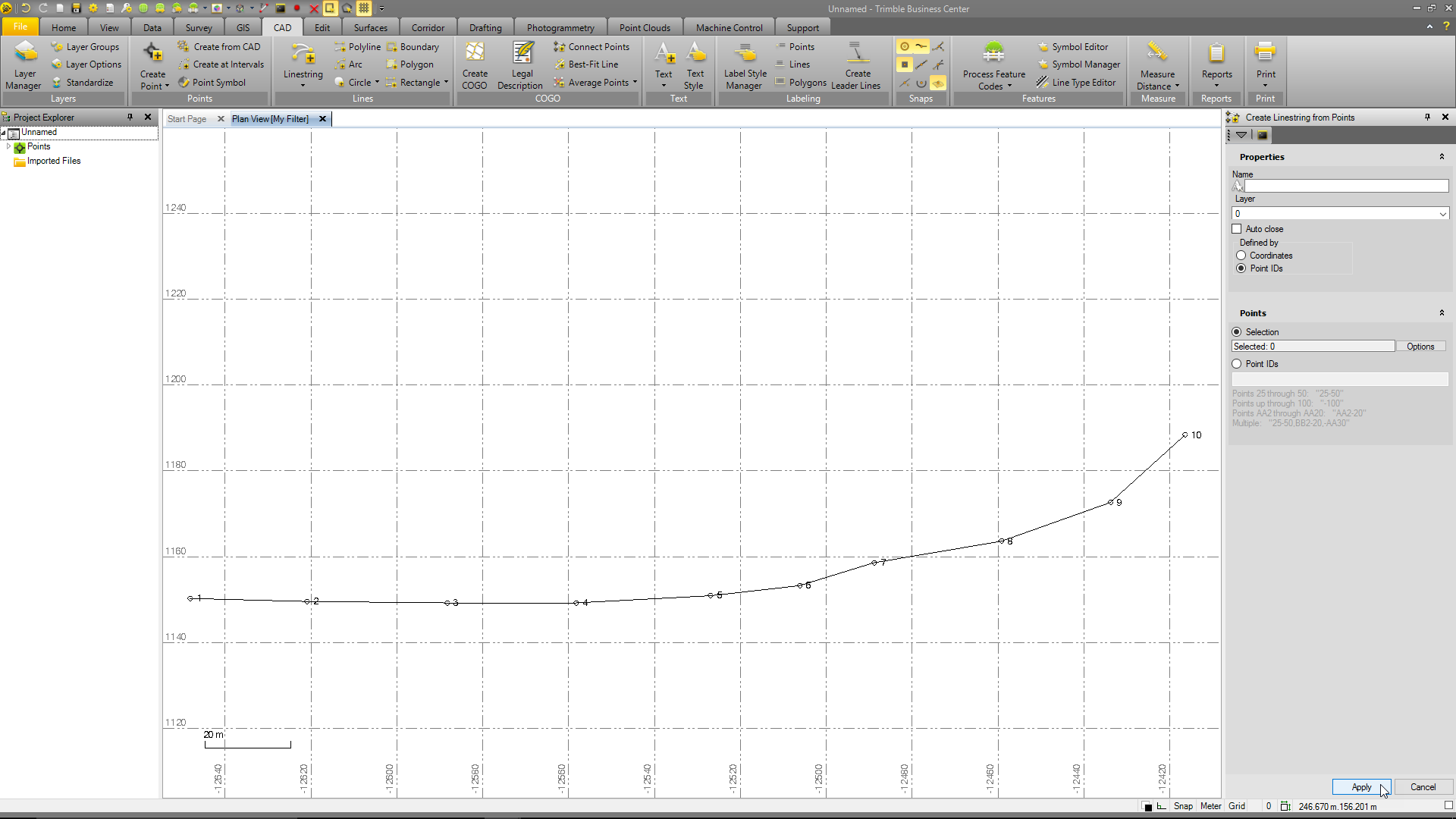

    If you are not using a feature code library, you can use the "Connect Points" command with the "Advanced Select" command to automatically create a line between the points.







    There is a great tutorial on setting up feature code libraries for automatic CAD generation and view filter managers here:









    Cheers,







    Riley
