Are you creating a design, or do you export manually through Home->Export. Either way, if you really create/export it as road surface you can't continue without selecting an alignment.

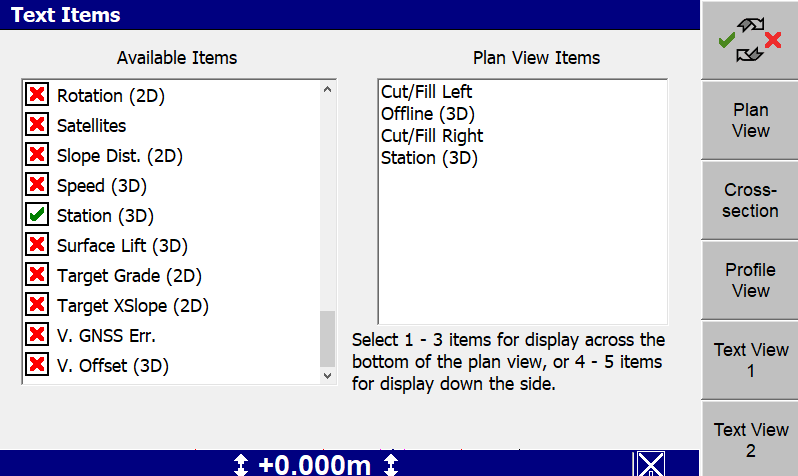

I assume you do have enabled the correct Text item in GCS900? Go into the menu, then "Text Items" and in "Available Items" scroll down to "Station (3D)" and tick it.

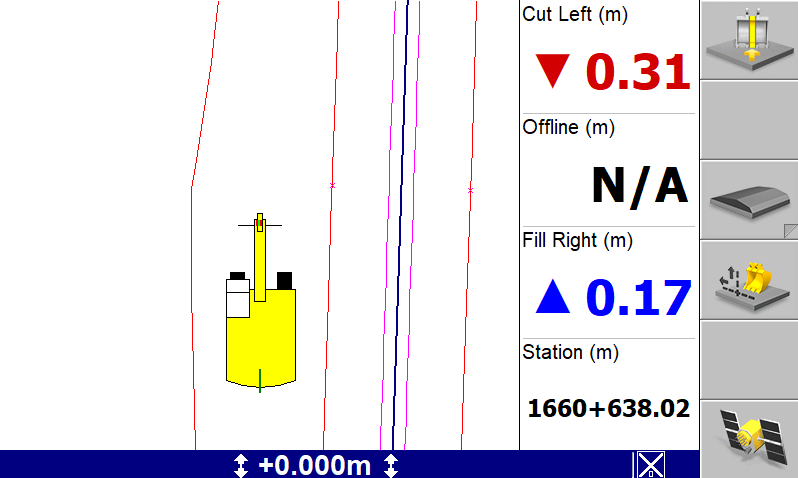

That works for me in the simulator.
What GCS900 version are you running?
------------------------------
Ronny Schneider
------------------------------
Original Message:
Sent: 08-05-2021 12:44
From: Joshua Watkins
Subject: Help! Real-time stationing on Alignment for GCS900
In TBC, I create my alignment and profile. I then export as a road surface (svl & svd). However, once we load into the machine, we do not get the running or "real time" stationing as we move up/down the alignment. Until we physically go in to horizontal offset, and choose the master alignment. Is there a certain way of creating, or exporting the svl/svd where it automatically recognizes the alignments in gcs900?
Thank you for the assistance.
------------------------------
Joshua Watkins
------------------------------
