Hello,

I am experiencing a problem, which - at the moment - I am unable to explain/solve.

Brief description:

I created two new lines (in red color in the picture below) parallel to the bold black line using CAD command Offset Line.
The first red one has the offset of 0.7m from the bold black line and the second red line has the offset 15.7m from the bold black line.

Then, I created the point vk2 on the 2nd red line using CAD command CREATE POINT/Factor of line. I needed to project the point vk2 perpendicularly
on the 1st red line, so I used the CAD command CREATE POINT/PERPENDICULAR TO LINE. The point vk1 was created using this function.

I checked the angle on the vk1 point (vk1 point is pivot point) and got the following result:

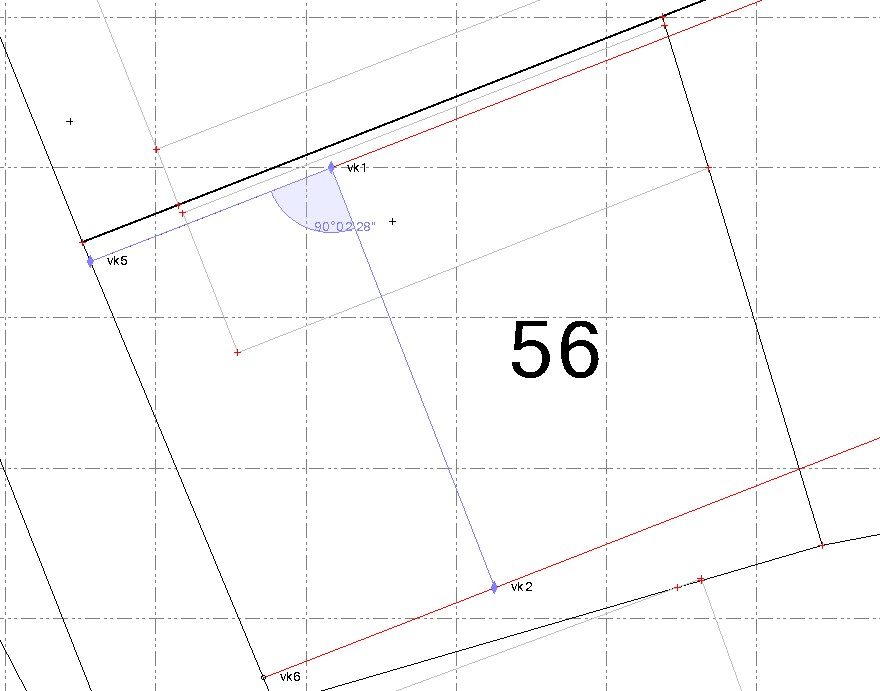

I expected there (with pivot point vk1) the right angle (90°00´00"), but as can be seen in the picture above, there is an angle value of 90°02´28".

Then, I checked this function separately creating 3 points, 2 of them I joined to a line and the 3rd point
I projected using the CAD command CREATE POINT/PERPENDICULAR TO LINE to the created line. The 4th point was created on the line.
When I measured the angle there (with the 4th point on the line as pivot point), the angle value was exactly 90°00´00" as expected.

Has someone an idea, where could be the problem?
