E57 files imported misaligned

  • 1.  E57 files imported misaligned

    Posted 09-13-2024 00:11

    I have aligned and cleaned a few X7 scans in Realworks, After that I have exported them as E57.

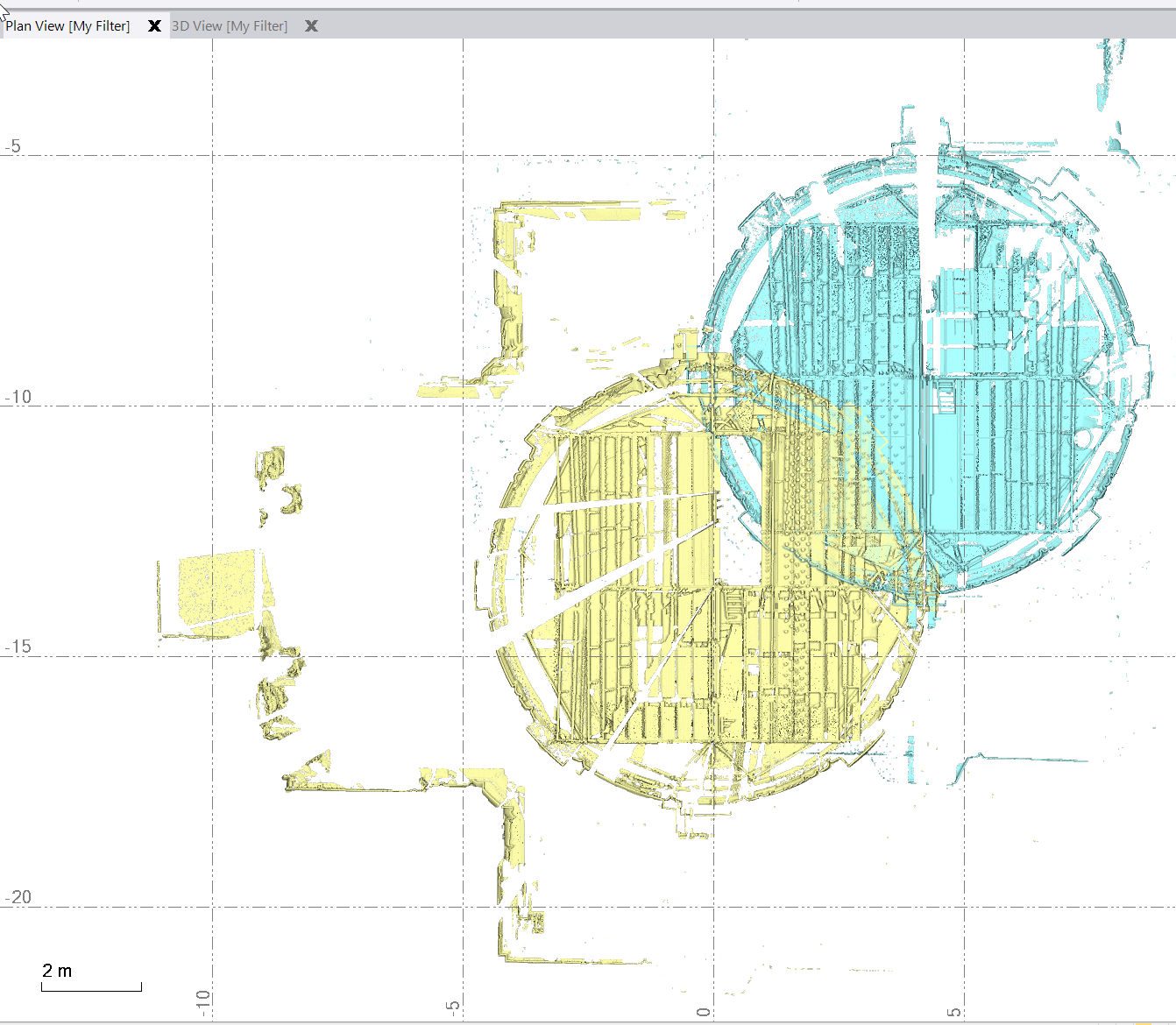

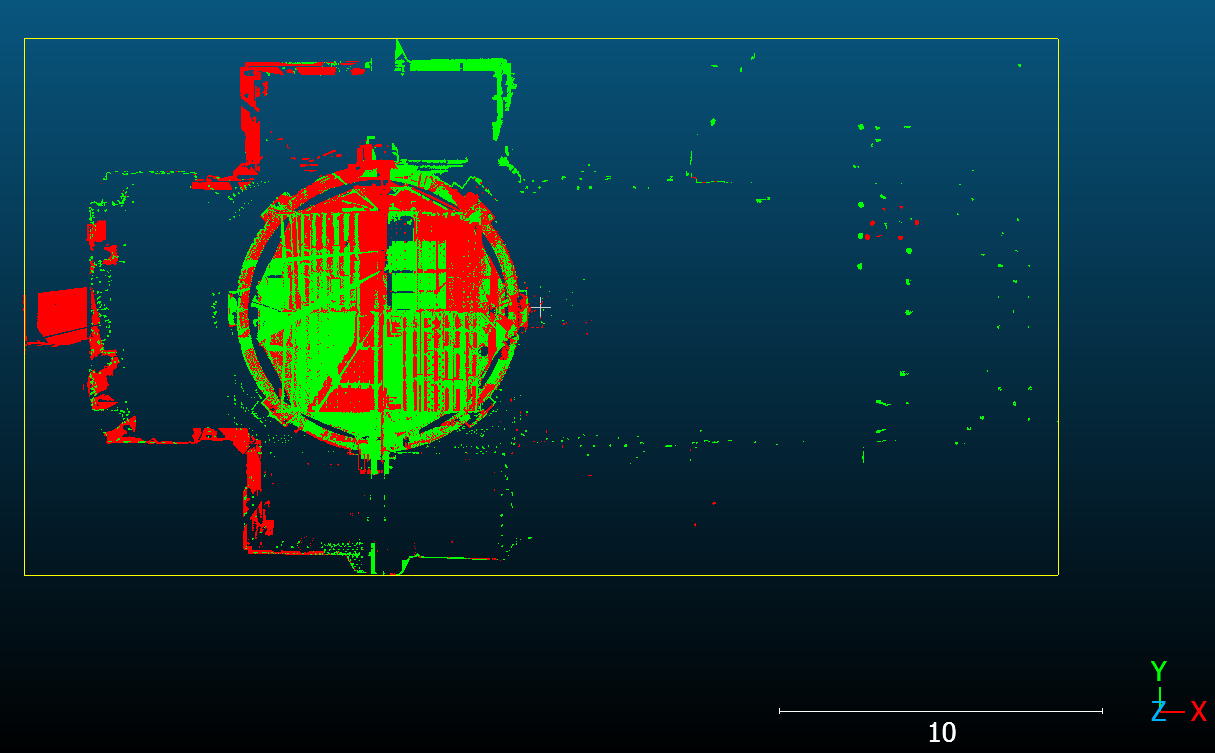

    When I open those files in CloudCompare they keep aligned, but when I do in TBC their absolute position and orientation is lost no matter the import settins that I choose. Does anybody know why?



    ------------------------------
    José Rubio
    ------------------------------
