if you are using a boundary to trim the surface. Try breaking the surface and make two surface. that way you wont have to make a boundary to void out the middle. Or another though, try adding a Material using the MSI at the middle. The Material placed must be a a empty material meaning when you drop a MSI and it gives you choice of which material to drop pick none.
------------------------------
Francisco Guerrero
------------------------------
Original Message:
Sent: 06-16-2022 05:44
From: Fredrik Bergstrom
Subject: Holes in surface wont show in cross-sections
Just tried it and did set the length to 4m and it was still the same.
------------------------------
Fredrik Bergstrom
Original Message:
Sent: 06-16-2022 05:33
From: Francisco Guerrero
Subject: Holes in surface wont show in cross-sections
is there a chance that the surface edge length needs to be changed. possibly the cross section is reading the surface even if there is a boundary.
------------------------------
Francisco Guerrero
Original Message:
Sent: 06-15-2022 11:32
From: Fredrik Bergstrom
Subject: Holes in surface wont show in cross-sections

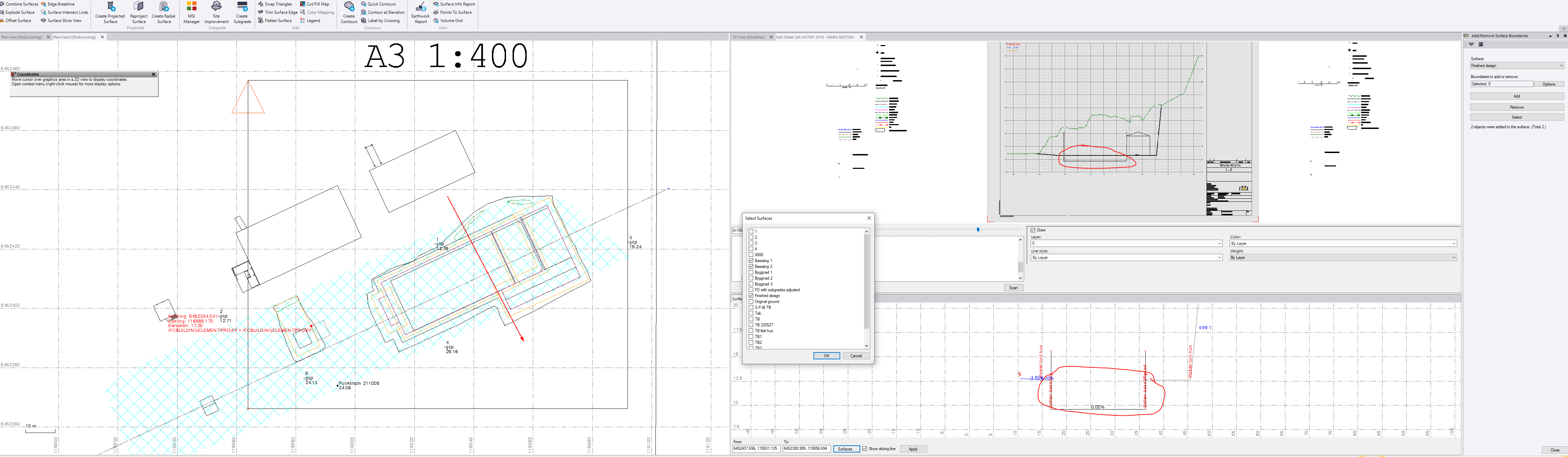

Its not the slicer viewer thats the problem, it works in that one, its the XS plans.
------------------------------
Fredrik Bergstrom
Original Message:
Sent: 06-15-2022 11:27
From: Francisco Guerrero
Subject: Holes in surface wont show in cross-sections

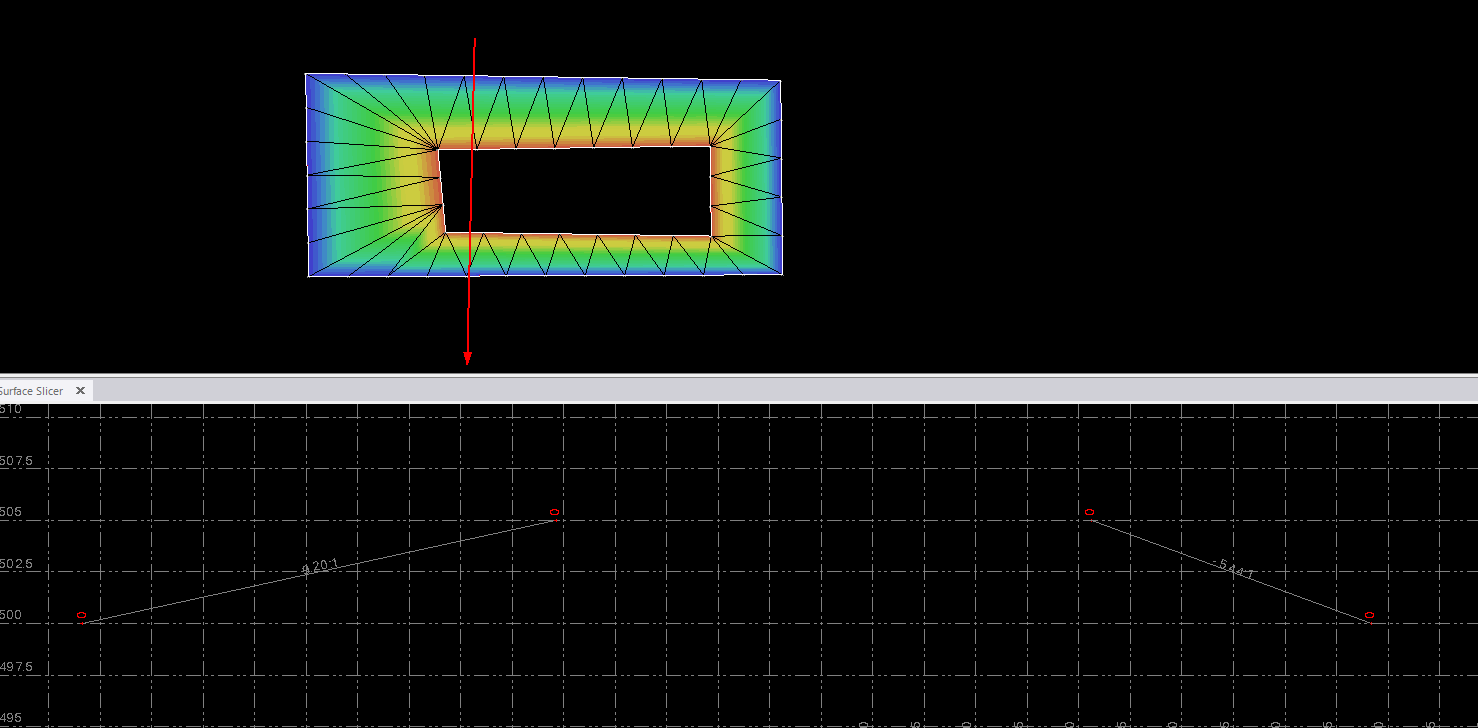

did you ever find the problem? I did a test surface with a hole. I am able to generate a hole in the slicer view.
------------------------------
Francisco Guerrero
Original Message:
Sent: 06-14-2022 06:41
From: Fredrik Bergstrom
Subject: Holes in surface wont show in cross-sections
------------------------------
Fredrik Bergstrom
Original Message:
Sent: 06-14-2022 06:12
From: Francisco Guerrero
Subject: Holes in surface wont show in cross-sections
can you show the actual surface in plan view.
------------------------------
Francisco Guerrero
Original Message:
Sent: 06-13-2022 23:48
From: Fredrik Bergstrom
Subject: Holes in surface wont show in cross-sections
Hi.

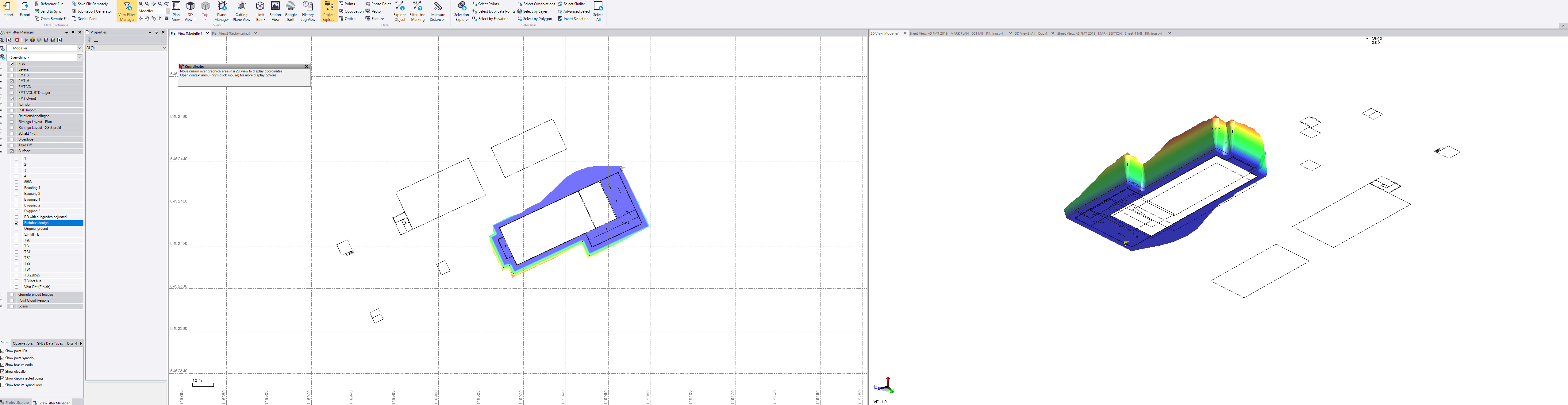

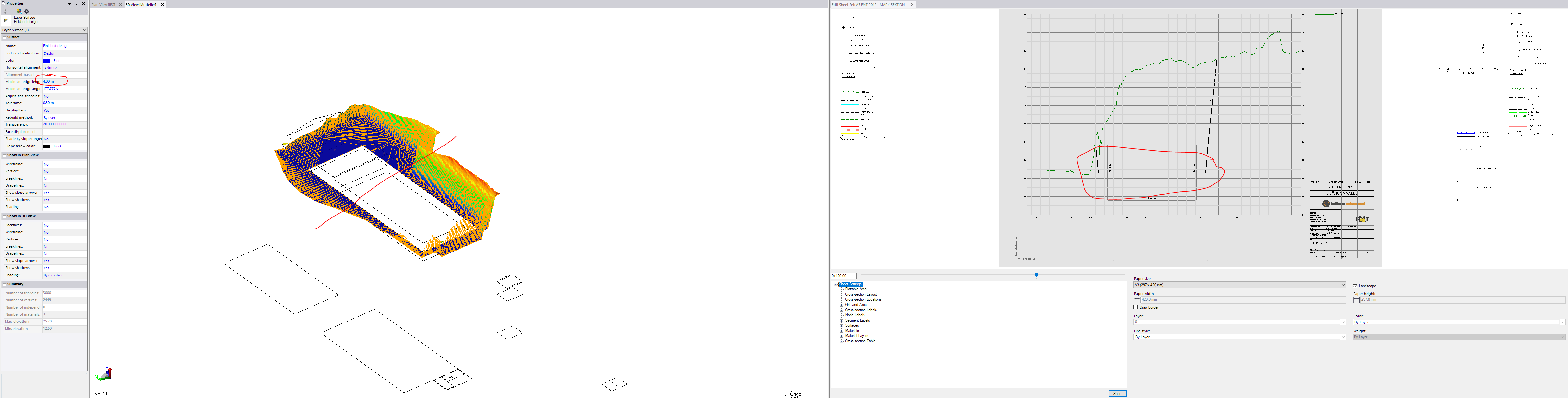

Running 5.7. When using surface boundaries i get holes in the surface wich i want to have. This is showing in 3D-view and surface slicer bit when doing a cross-section drawing its no hole, the surface is showing when it should not.
------------------------------
Fredrik Bergstrom
------------------------------
