LAS files to DTM

  • 1.  LAS files to DTM

    Posted 12-06-2022 00:12
    If I have a *.LAS file from a photogrammetry drone project, (A point cloud / DEM?), is there some way within TBC / UAS Master to extract a "Bare Earth DTM" by cleaning up vegetation / moving objects in chosen area/s.
    Thanks.


    ------------------------------
    Saif Bin Darwish
    ------------------------------


  • 2.  RE: LAS files to DTM

    Posted 12-06-2022 02:06
    Hi Saif

    In the "Photogrammetry" tab there is a "Extract Ground" command that you can use. In the "Point Clouds" tab you can also use the "Extract Classified Point Cloud Regions" if you want to extract Vegetation, Buildings, Ground and more point cloud regions from a point cloud in TBC.

    Regards

    ------------------------------
    Albert Olivier
    TBC Technical Product Manager
    ------------------------------



  • 3.  RE: LAS files to DTM

    Posted 12-07-2022 00:44

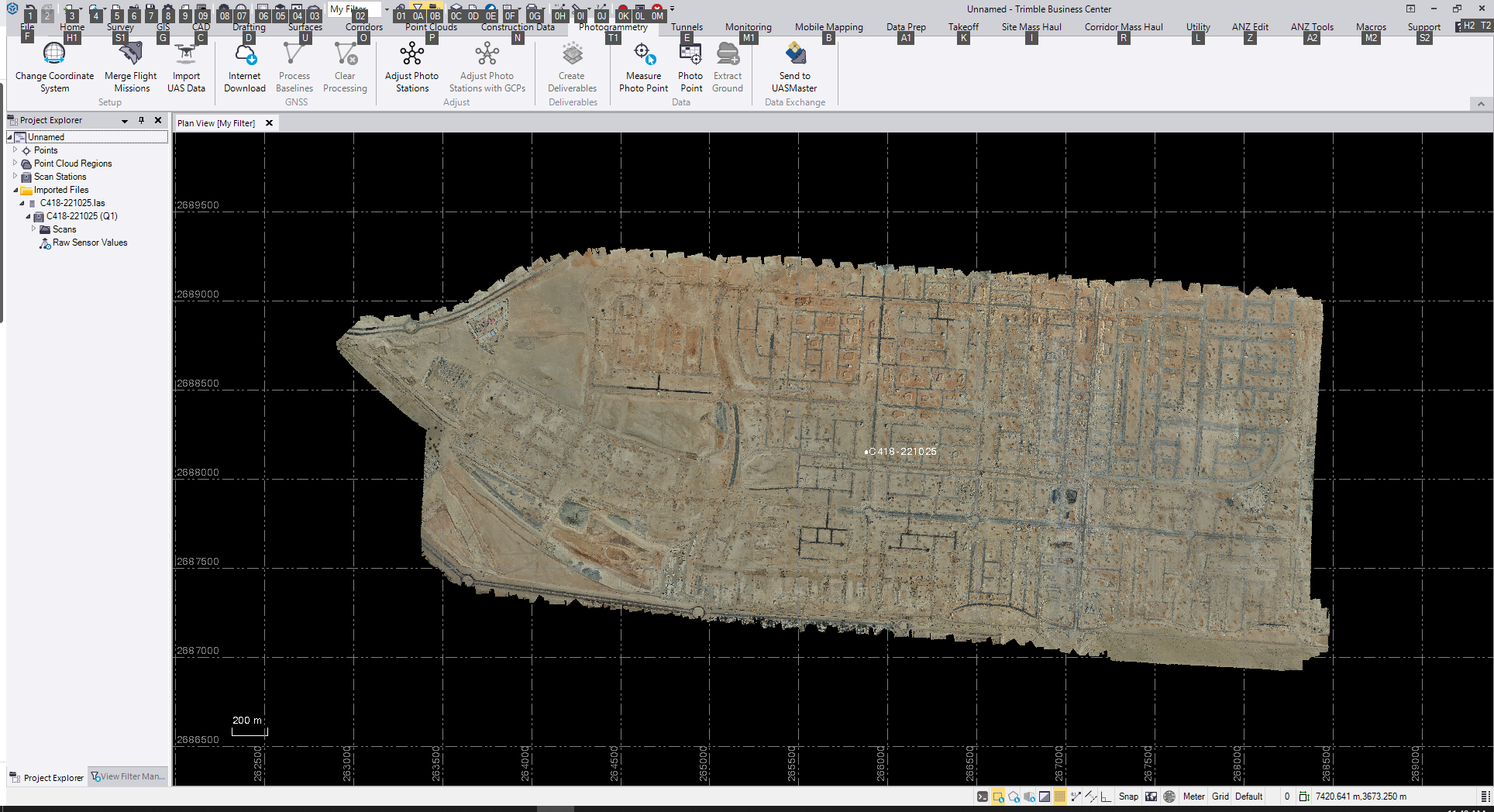

    "Extract Ground" is disabled. Please see below.

    Thanks.



    ------------------------------
    Saif Bin Darwish
    ------------------------------

    Original Message


  • 4.  RE: LAS files to DTM

    Posted 12-07-2022 01:42
    Hi Saif

    Please select the point cloud first that you want to use, the "Extraxt Ground" command will then be available.

    Regards

    ------------------------------
    Albert Olivier
    TBC Technical Product Manager
    ------------------------------

    Original Message


  • 5.  RE: LAS files to DTM

    Posted 12-07-2022 02:34
    Done. Thanks.
