Hello all,

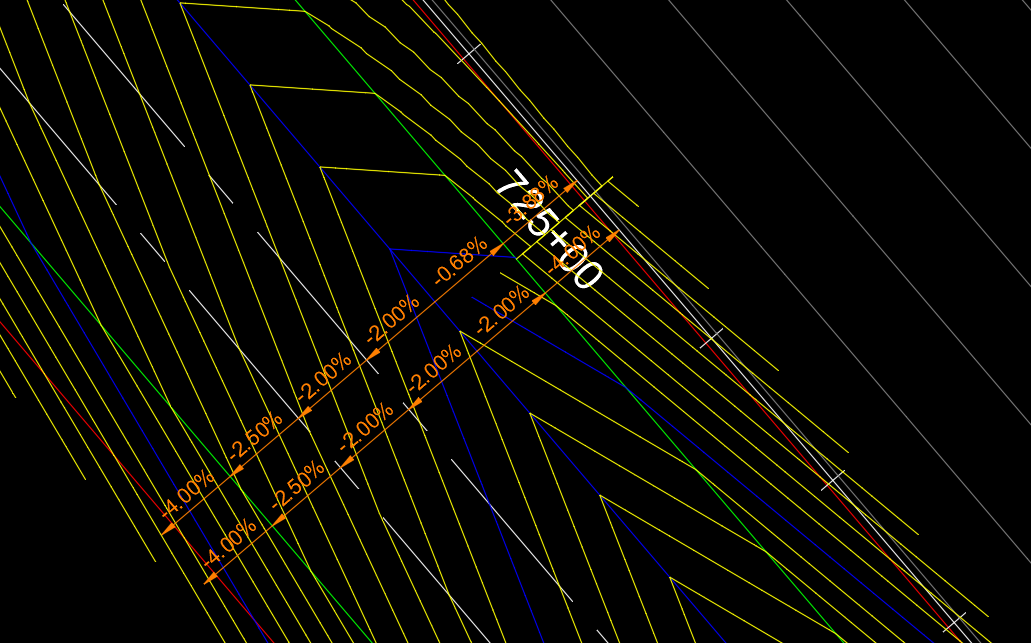

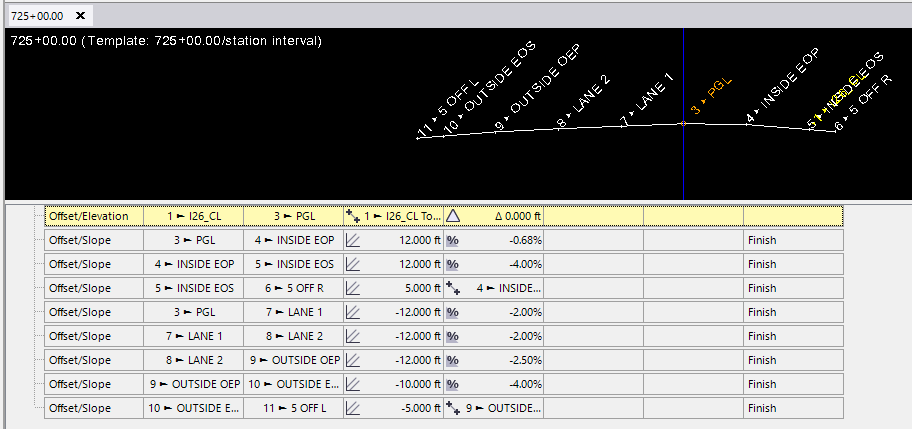

I am having a problem with an offset PGL articulating my super elevations correctly in my corridor templates. I have a HAL, and a VAL assigned per side of the highway, EB and WB. I have my first instruction as being an offset and elevation to the PGL line added to my reference lines so it shows up as a node in my template options. My instruction places the PGL at this line with an offset of 0 in elevation, and its not added to my surface. However, when I get to changes in slope at each transition to a super, the template does not change the slope gradually to the next template. Its an abrupt change at that station, and it leaves strange contours at each station of super transition. Can anyone help? I have posted screenshots below of my corridor templates and my contours as imported into Civil 3D. Thanks is advance! Let me know if you have any questions. Hopefully I described my problem clearly enough.
------------------------------
