Surface Creation issue

  • 1.  Surface Creation issue

    Posted 01-05-2023 23:13
    I created several Linestrings. They are like Pads (Closed Polygons with a single Elevation each).

    I used these as surface members to generate a surface.

    Surface within some Polygons have the same elevation all across, one particular polygon (A rectangle) has varying elevations. Unable to diagnose cause. Could some one help.

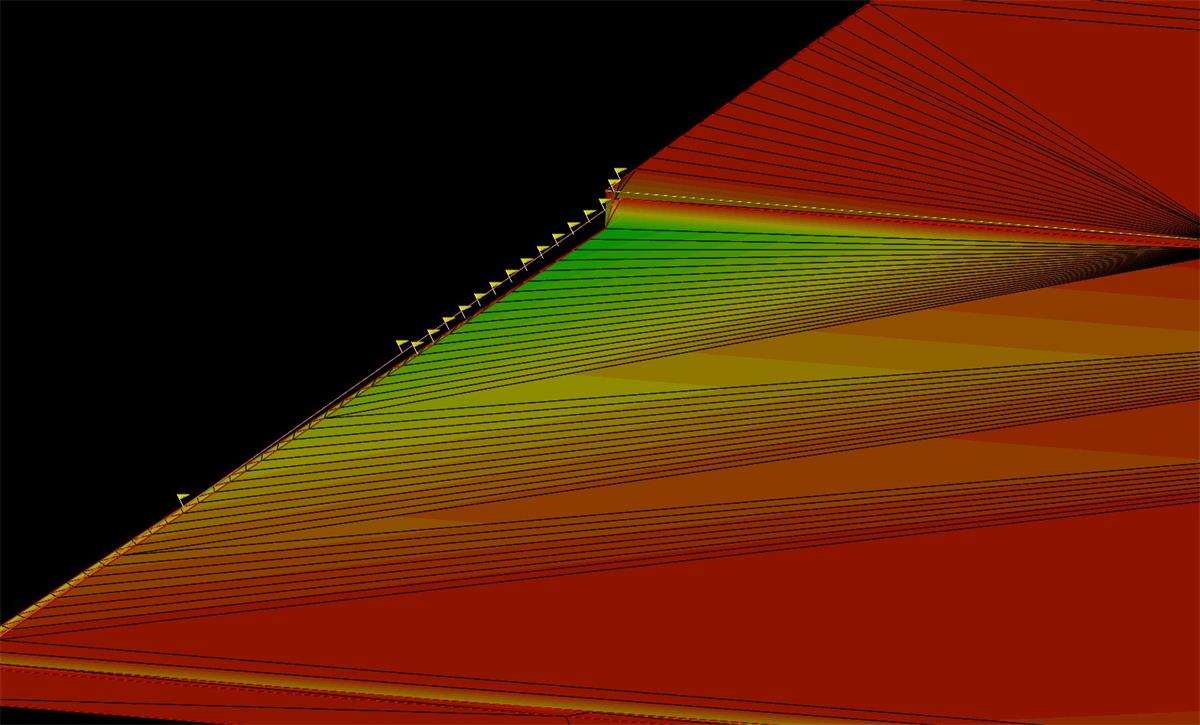

    I have attached the concerned vcl file, zipped and the screen shot of concerned area with surface profile.

    Thanks.

    ------------------------------
    Saif Bin Darwish
    ------------------------------

    Attachment(s)

    zip
    FGL Meram Dec 2022.zip   6.86 MB 1 version
    pdf
    To Trimble Support.pdf   62 KB 1 version


  • 2.  RE: Surface Creation issue

    Posted 01-06-2023 11:57
    It would help if you told us the surface names you're talking about. Be more specific.

    ------------------------------
    Adam Bower
    ------------------------------

    Original Message


  • 3.  RE: Surface Creation issue

    Posted 01-06-2023 15:17
    The linestring 'RGL Outer Bdy' is the master line for the 'FGL-RGL' surface tie, the surface tie is a member of 'FGL All' surface but the master linestring is not, it's conflicting with the Zone 9 linestring in the FGL layer. You need to either edit the RGL Outer Bdy line to match the Zone 9 linestring at that 35.70 elevation or make a new linestring with the correct elevations for your surface tie to work correctly.



    ------------------------------
