I have this strange issue.

I have created a Corridor Template.

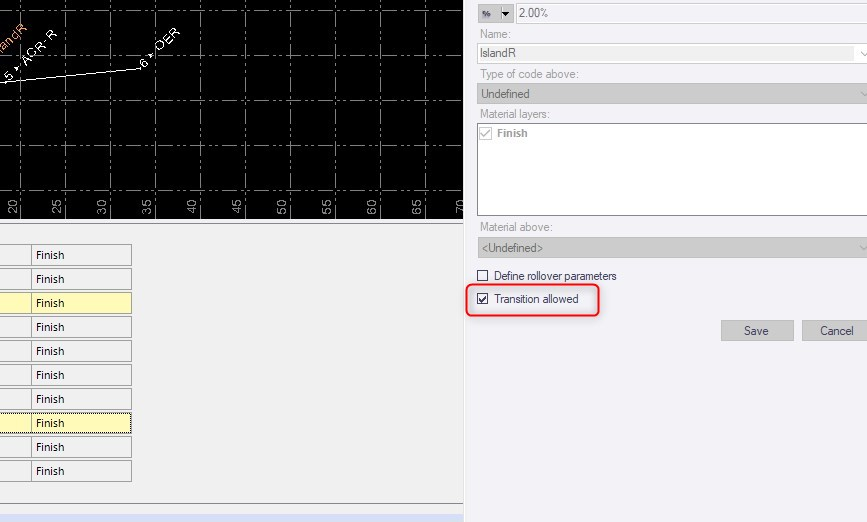

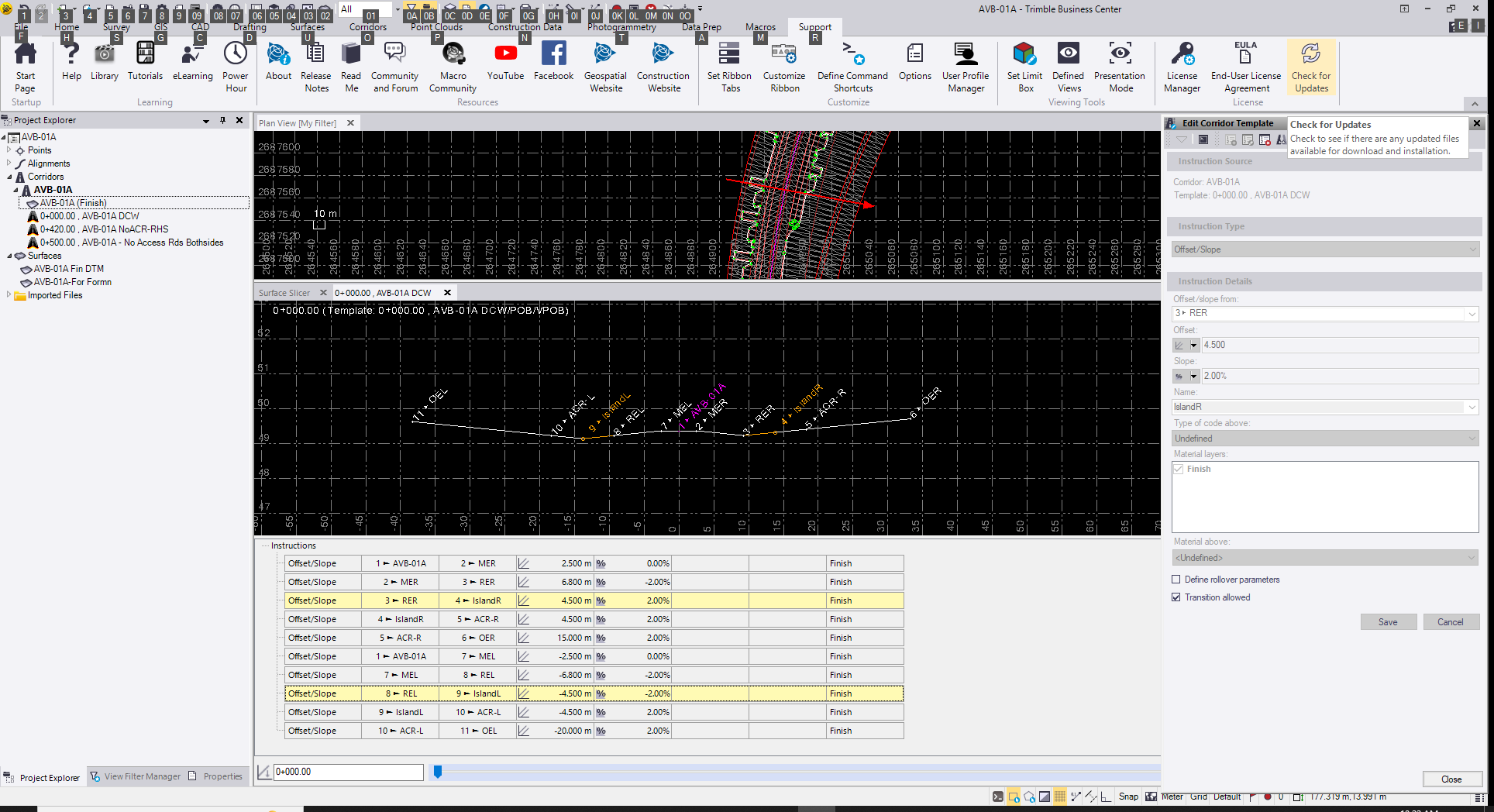

In the two highlighted segments above, when I use the slider bar, I see that the Offset width varies. I could not find a reason for the same.

I have attached the *.vce file as a Zip file.

Could some one help me.

Thanks.

------------------------------
Saif Bin Darwish
------------------------------

All of them are staying consistent on my end Saif. However the first 3>4 is showing a positive 2% on your screen shot on the file provided its -2%


There is also on one template in the file provided you have three



------------------------------
Erik Petersen
------------------------------

Original Message:
Sent: 09-06-2022 23:28
From: Saif Bin Darwish
Subject: Template versus Surface



I have this strange issue.

I have created a Corridor Template.

In the two highlighted segments above, when I use the slider bar, I see that the Offset width varies. I could not find a reason for the same.

I have attached the *.vce file as a Zip file.

Could some one help me.

Thanks.

------------------------------
Saif Bin Darwish
------------------------------

Original Message:
Sent: 9/7/2022 10:10:00 AM
From: Erik Petersen
Subject: RE: Template versus Surface

All of them are staying consistent on my end Saif. However the first 3>4 is showing a positive 2% on your screen shot on the file provided its -2%


There is also on one template in the file provided you have three



------------------------------
Erik Petersen
------------------------------

Original Message:
Sent: 09-06-2022 23:28
From: Saif Bin Darwish
Subject: Template versus Surface



I have this strange issue.

I have created a Corridor Template.

In the two highlighted segments above, when I use the slider bar, I see that the Offset width varies. I could not find a reason for the same.

I have attached the *.vce file as a Zip file.

Could some one help me.

Thanks.

------------------------------
Saif Bin Darwish
------------------------------

Those auto-connecting nodes can be annoying and dangerous. Run into that a long time ago.
See here for the old thread
"corrupted" TBC file - any way to extract information or load anyway? | Trimble Business Center

Alan Sharp explains in number 8 how that works and suggests to add a Null/empty template before the next section. That will prevent the nodes in different templates to auto-connect.
Have been doing that ever since. Haven't done corridor modelling in a while, don't know if the feature request Alan mentions has been implemented in any way.

------------------------------
Ronny Schneider
------------------------------

Original Message:
Sent: 09-07-2022 21:49
From: Saif Bin Darwish
Subject: Template versus Surface

I figured out what was going wrong.

I had created additional templates further ahead in the chainage and the segment was transitioning in width to the next template.

I corrected by creating additional templates which were copies of the previous template just a meter before the new template. This fixed the issue.

Thanks for all help.

If there is an easier and more robust work-around, do please let me know.
