 Drone flight file convesion

sungmin shon's profile image
sungmin shon posted 05-31-2022 19:49
Hi All

Lately, I have received drone survey files a lot from contractors.

Usually the format it comes through is TIF format and they are usually named dsm image.

When I import the TIF file, it acts pretty much same as importing a PDF. Therefore I can georeference it to position it, but I cannot get any levels off it.

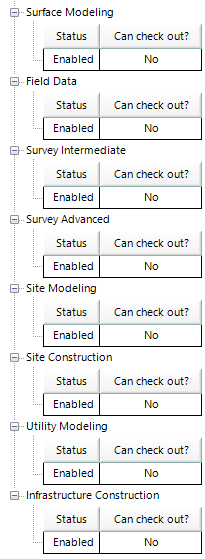

Currently, the features I have in my TBC licence is as below


I would like to know if I can convert the TIF file to something I can extract the coordinates.

To be honest, I am not even sure if TIF files contain coordinate information itself or not. (sorry I am pretty ignorant with drone survey and file formats etc)

Usually, I ask the sender to convert the file to TTM format so that I can use the surface to do my calculation.

However I would like to be able to do conversion myself as not everytime they are available to convert it for me.

Or Is there a file format that makes everyone's job easier?

I look forward to hearing from all of you.

Thank you.
Thomas Widmer's profile image
Thomas Widmer
Hello Sunming,
concerning your question:
"...
To be honest, I am not even sure if TIF files contain coordinate information itself or not.
..."
there is a free tool called GeoTIFF Examiner from Mentor Software. Here is the link describing the tool with a link to download the small EXE file (307.96KB):
https://freegeographytools.com/2007/handling-tiff-worldfiles-with-geotiffexaminer

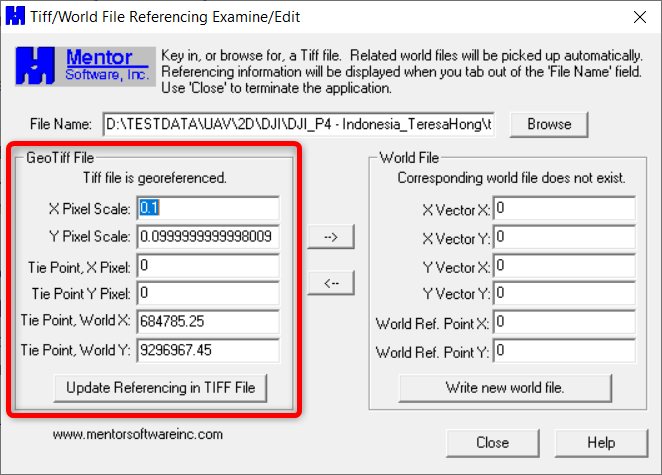

You can install it, open it and navigate to your TIFF. Load it and you will see if the TIFF file contains a geo-reference.
In my example here the TIFF contains a geo-reference.



If you really want to dig deeper into conversion tools for raster data, you could take a look at the free tool QGIS. Here a link to start from:
https://www.qgistutorials.com/en/docs/working_with_terrain.html

As you can see in the link, GeoTIFF is a very common format for surfaces, even USGS uses it to store their raster height models.
So I would say, yes the format GeoTIFF is making life for many people easier.

But to answer your other questions, I think you need to be more specific about it. So here my additional questions:

I would like to know if I can convert the TIF file to something I can extract the coordinates.
Question: What coordinates do you want to extract? What product do you want to generate at the end from it?

Usually, I ask the sender to convert the file to TTM format so that I can use the surface to do my calculation.
However I would like to be able to do conversion myself as not everytime they are available to convert it for me.
Answer: Sorry Sunming, I hope someone else can answer here and give you advice how to convert it to TTM.
