.DXF import error

View Only

Sean Rice posted 02-13-2025 10:34

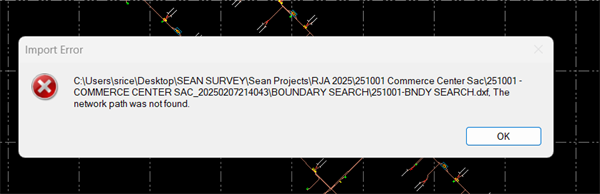

I have version 2024.10 of TBC and I'm having some issues importing .DXFs. Some of them import fine by dragging and dropping but most of the others I get the message below. I've tried changing the names of the files and importing through the import tab but nothing seems to work. Any suggestions would be greatly appreciated. Thanks

Zach Edwards posted 02-14-2025 08:33

I would see if you can save out (from AutoCAD civil3D or AutoCad Map3D) the DXF to a slightly older version. I have had luck with that in the past. Also, try saving out as DWG; I have had better luck working with the DWG file format in TBC than DXF. Lastly, I see that you have spaces in that directory (shown in the screenshot). Many software packages don't like this. A quick test would be to cut and past the dxf into the root of your C drive or another drive and then try bringing it into TBC. Lastly, you could run an purge/audit in AutoCAD and then export to DXF or DWG again. I hope that one of these gets you to the finish line here!

Sean Rice posted 02-16-2025 06:28

Thank you Zach , I tried all your suggestions and the one that worked was running purge/audit in civil 3d. I tried doing the same thing on some other files that weren't working and I still can't get a few of them to import but it did work for others. It seems like it might be a combination of a few things. Thanks for the suggestions again.
