Exporting draughted surveys issue

View Only

Raymond Garlick posted 09-14-2023 01:53

I am having a re-occurring issue when exporting to CAD a survey I have draughted in TBC

I use an FXL to draught my surveys, process feature codes and then carry out a small amount of editing in TBC

When I try to export everything to CAD then a lot of the time either not all linework comes through and/or some of the text edits get reversed

Does anyone know what the problem might be? Or is this a bug?

I have attached a project that this is happening with if someone wanted to try to replicate the issue

Thanks

Attachment View in library

Project.zip 627 KB

Francisco Guerrero posted 09-14-2023 03:46

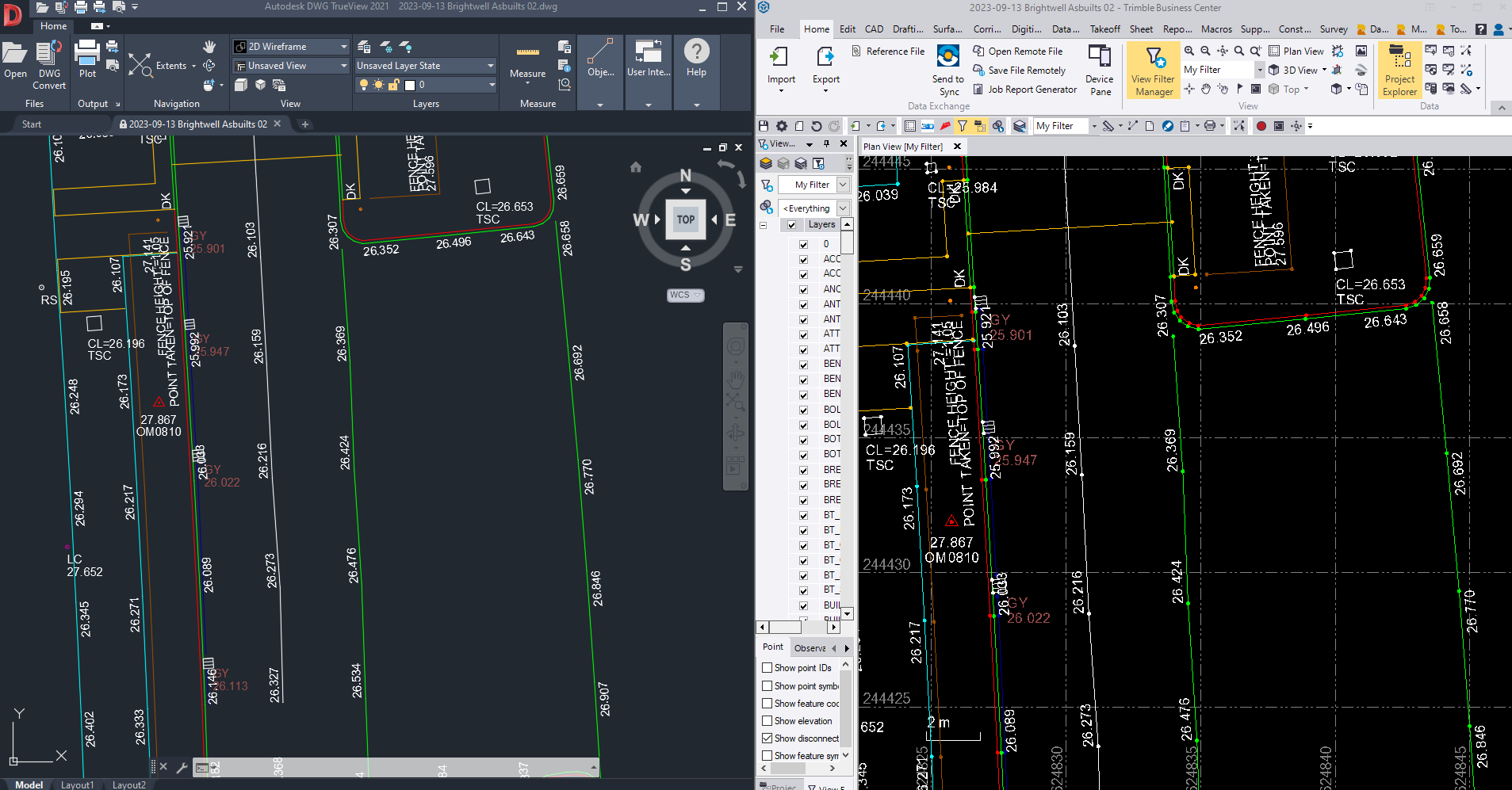

I was able to export all the data as a DWG. Looks to be all there. If your exporting as a DXF, try the DWG option.

Raymond Garlick posted 09-14-2023 03:50

Thanks for trying to replicate the issue. That's strange as my colleagues are also experiencing the same problem. What version of TBC are you running?

Is it possible to upload your exported CAD file please?

Thanks again

Francisco Guerrero posted 09-14-2023 04:00

I am running 5.90.1*. just started running this version as of this week.

no option for me to upload any files on this thread.
