 Extract Dashed line using Semi-automated line extraction

Francesco Sisani's profile image
Francesco Sisani posted 09-11-2025 05:49

Hi

I treied to extract dashed lines from MX9 dataset but normally not work

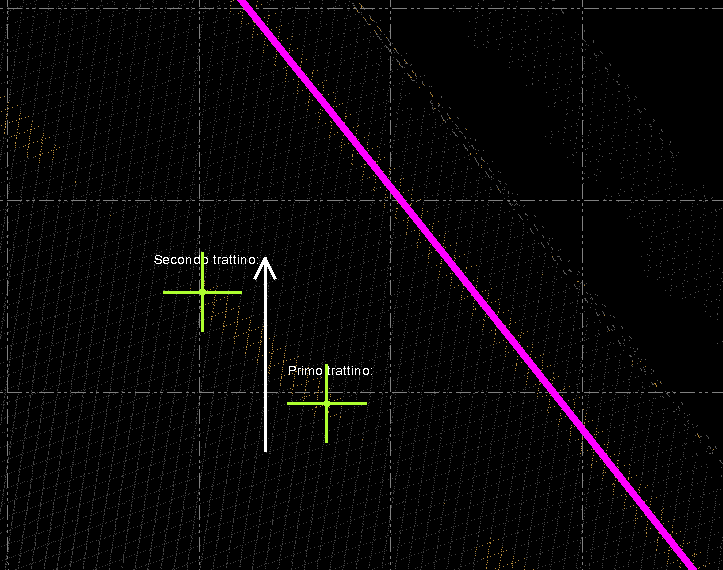

I received this

Any suggestions ?
I tried to "play" with intensity value and different start - end point but no result
thx
Francesco
Vincent Fortier-Richer's profile image
Vincent Fortier-Richer posted 12-03-2025 14:37

Hi Francisco, first click: center of the first dash; second click: center of the next dash.
