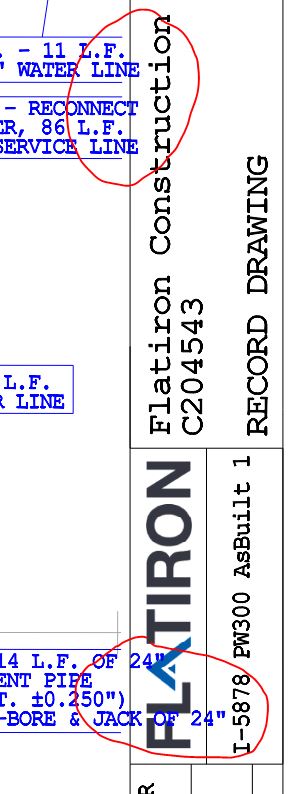

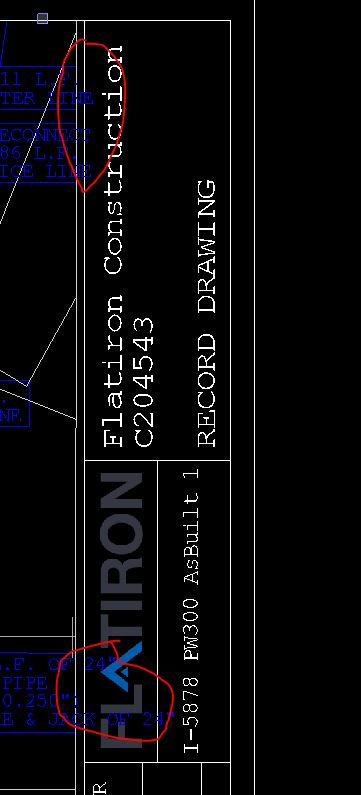

I'm running into an issue where content is plotting outside of my dynaview boundary in plan view. It appears to be CAD text and CAD lines, both imported into TBC and ones generated by TBC (Alignment labels). Had this issue on 5.81 when I first started learning how to plot. Still have this issue on 2023.10.
It seems that if more than 50% of the CAD Text or CAD object is contained within the dynaview boundary, it will plot the entire CAD object, even if it's outside of the boundary. Is there any way to stop this behavior?
Thanks,
Andrew
