 Project Linestring to Cross Section

Andrew Walther's profile image
Andrew Walther posted 09-12-2022 09:30

Good day,

We are amidst construction and concerned that a newly laid gas main is too close to the road bed.  We would like to show the gas main, currently represented as a 3D linestring, projected to a cross section.

Does anybody have any ideas on how we could accomplish this in TBC?  We have Survey Advanced, Field Data, Surface Modeling and Survey Intermediate.

Thanks!

Andrew


Marian Plucinski's profile image
Marian Plucinski posted 09-12-2022 23:54
1) Create a corridor. Use alignment of the road. Add Finished Surface Level and Subgrade surfaces as reference objects to that corridor.
2) Add you 3D linestring as a reference object to your Corridor
3) When plotting XSections for your new alignment, your gas line will pop up as a dot
4) To improve the presentation, you could create 2x half-shell surfaces for the top and bottom of your gas main, then you will see nice circle where cross-sections contains the gas main
Marian Plucinski's profile image
Marian Plucinski posted 09-13-2022 00:08

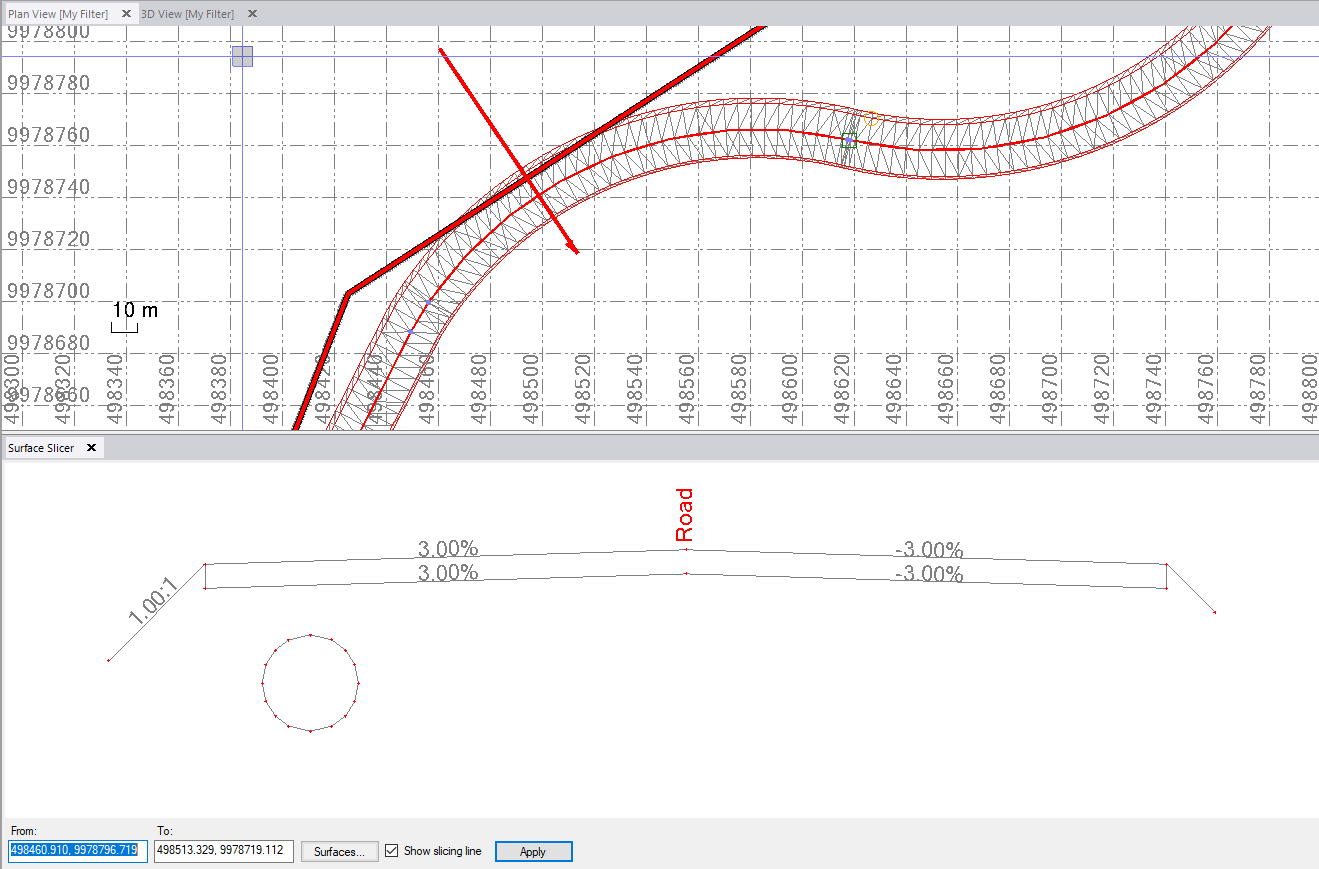

Surface Slicer:

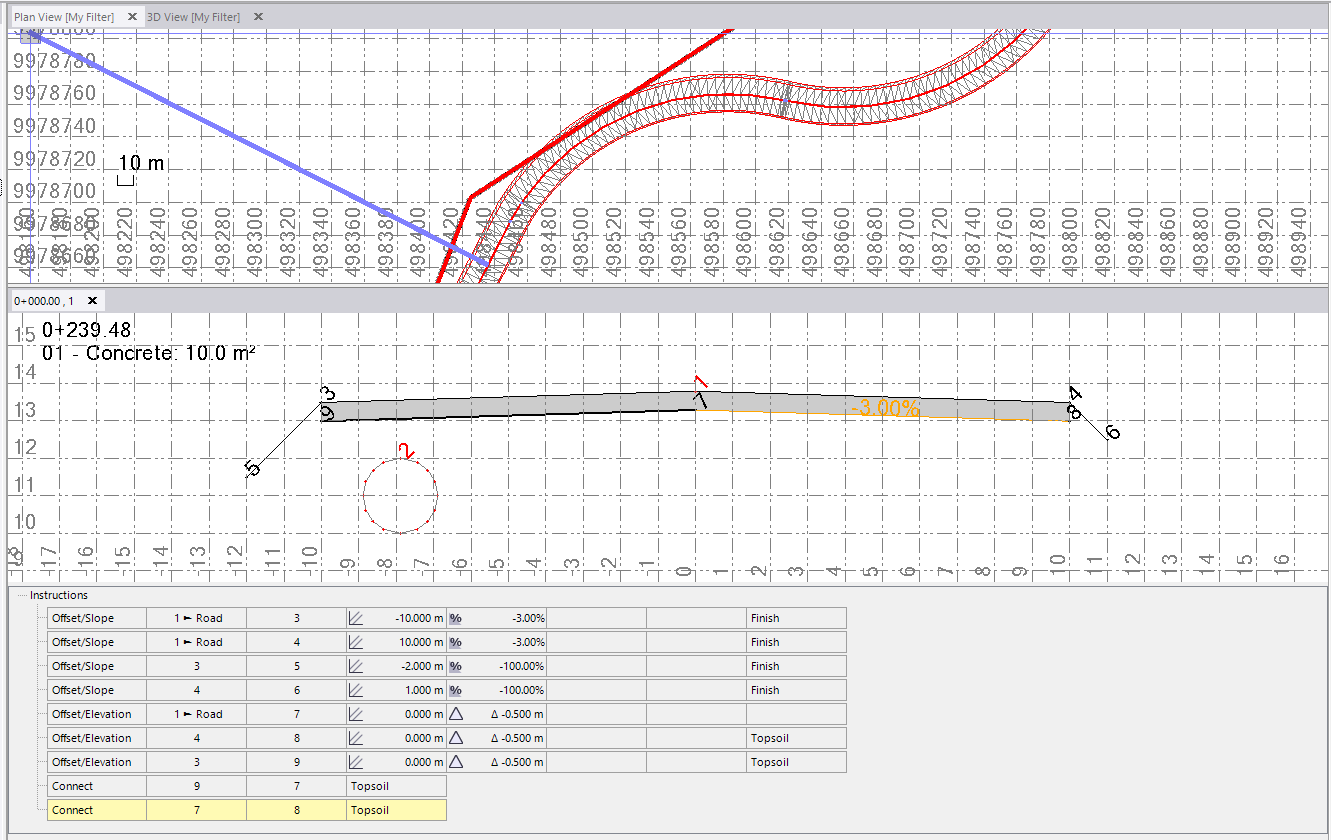

Corridor Editor:
